LVK12R010DER - Ohmite

Description: Resistor 0R01 0.5% 0.5W 4 Terminal Ohmite LVK12 Series Metal Alloy Current Sensing Surface Mount Resistor 0.5% 0.5W ±50ppm/°C

Download LVK12R010DER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

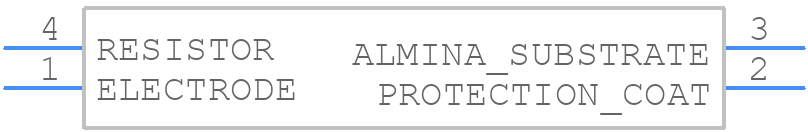

LVK12R010DER - Ohmite - PCB symbol
click to zoom
PCB Footprints
LVK12R010DER - Ohmite PCB footprint - Other - Other - LVK12R010DER-2
click to zoom
3D Models
LVK12R010DER - Ohmite - 3D model - Other - LVK12R010DER-2
click to zoom

LVK12R010DER Details

  • Manufacturer Part Number:

    LVK12R010DER

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    14

  • Additional Feature:

    HIGH PRECISION

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    0.5 mm

  • Package Length:

    3.2 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    1.6 mm

  • Packing Method:

    TR, 7 INCH

  • Rated Power Dissipation (P):

    0.5 W

  • Rated Temperature:

    70 °C

  • Resistance:

    0.01 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    1206

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    0.5%

LVK12R010DER Frequently Asked Questions (FAQs)

  • The thermal resistance of the LVK12R010DER is typically around 10°C/W, but this can vary depending on the specific application and mounting method.
  • While the LVK12R010DER is a high-power resistor, it is not optimized for high-frequency applications. It's best suited for DC or low-frequency AC applications.
  • The LVK12R010DER is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, it can be coated with a conformal coating to improve its moisture resistance.
  • The LVK12R010DER can withstand surge voltages up to 2.5 times its rated voltage for a short duration (typically 1-2 seconds). However, repeated surges can affect the resistor's long-term reliability.
  • The LVK12R010DER is designed to withstand moderate vibration levels. However, extreme vibration can cause the resistor's internal connections to fail. It's recommended to secure the resistor properly and use a vibration-dampening material if necessary.
