- Part Number LX3302AQPW-TR
- Manufacturer Microchip
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - (ST)14-Lead(TSSOP)
- Released Date May 30, 2023
- Last Modified Date May 30, 2023 9:05 AM UTC
- Pinout / Pin List Click Here (Member Only)
LX3302AQPW-TR Details
-
Manufacturer Part Number:
LX3302AQPW-TR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
TSSOP-14
-
Pin Count:
14
-
Manufacturer Package Code:
TSSOP-14
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
8 Weeks
-
Date Of Intro:
2020-02-17
-
Manufacturer:
Microchip Technology Inc
LX3302AQPW-TR Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
-
Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power decoupling, and place it as close to the device as possible. Ensure the power supply is stable and within the recommended voltage range (2.7V to 5.5V).
-
The maximum clock frequency is 50 MHz, but it's recommended to operate at 25 MHz or lower for optimal performance and to minimize power consumption.
-
Use the power-down mode (PD pin) to reduce power consumption when the device is not in use. Also, adjust the clock frequency and voltage regulator settings to minimize power consumption.
-
The recommended operating temperature range is -40°C to +85°C. However, the device can operate up to +125°C with reduced performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
LX3302AQPW-TR Overview

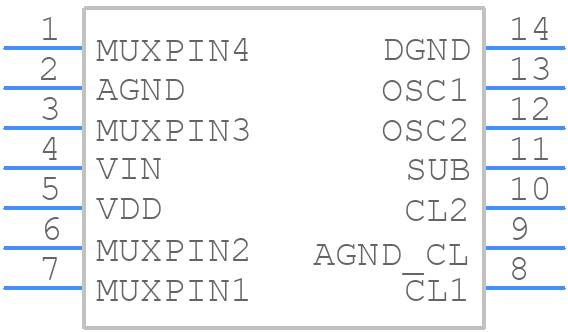

Use the download button to access the LX3302AQPW-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LX330,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
