LX7165-01CSP - Microchip

Description: High efficiency, ultra fast response regulator

Download LX7165-01CSP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

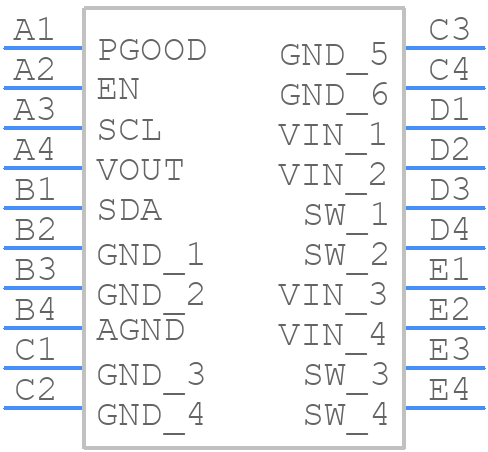

Symbol
LX7165-01CSP - Microchip - PCB symbol
click to zoom
PCB Footprints
LX7165-01CSP - Microchip PCB footprint - BGA - BGA - WLCSP 20 Ball 0.4mm Pitch
click to zoom
3D Models
LX7165-01CSP - Microchip - 3D model - BGA - WLCSP 20 Ball 0.4mm Pitch
click to zoom

LX7165-01CSP Details

  • Manufacturer Part Number:

    LX7165-01CSP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PBGA-B20

  • Length:

    2.045 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    1.035 V

  • Output Voltage-Min:

    0.8865 V

  • Output Voltage-Nom:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.626 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2250 kHz

  • Technology:

    MOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.63 mm

LX7165-01CSP Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the LX7165-01CSP evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance, low noise, and minimal EMI.
  • The LX7165-01CSP requires a stable power supply with adequate decoupling capacitors. Ensure that the power supply rails are well-filtered, and decoupling capacitors are placed close to the device. A minimum of 10uF and 100nF capacitors are recommended for each power rail, with the 100nF capacitor placed as close as possible to the device.
  • The LX7165-01CSP is rated for operation from -40°C to +125°C. However, it's essential to ensure that the device is properly heat-sinked and that the PCB is designed to dissipate heat effectively, especially in high-temperature applications.
  • To minimize noise, ensure that the device is operated within the recommended supply voltage range, and that the input signals are properly filtered and terminated. Additionally, use a low-noise power supply, and consider using a noise-reducing capacitor on the VCC pin.
  • The LX7165-01CSP can be clocked using an external clock source or an internal oscillator. For optimal performance, use a high-quality external clock source with a stable frequency, and ensure that the clock signal is properly terminated and filtered.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LX7165-01CSP Overview

Use the download button to access the LX7165-01CSP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LX716, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
