Microsemi recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
The LX7167CLD-TR requires a power-on reset (POR) circuit to ensure proper initialization. A 10kΩ pull-up resistor on the RST pin and a 0.1μF capacitor on the VCC pin are recommended. The device should be powered up with a single 3.3V supply, and the RST pin should be pulled high after power-up.
The LX7167CLD-TR can operate with clock frequencies up to 100 MHz. However, the maximum clock frequency may be limited by the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for specific guidance.
Microsemi recommends using a logic analyzer or oscilloscope to capture and analyze the device's signals. Additionally, checking the power supply, clock signal, and reset circuit can help identify common issues. Consult the datasheet and application notes for specific troubleshooting guidance.
Yes, the LX7167CLD-TR has a maximum junction temperature of 150°C. It's recommended to use a thermal pad or heat sink to dissipate heat, especially in high-power or high-temperature applications. Consult the datasheet for specific thermal characteristics and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LX7167CLD-TR Overview

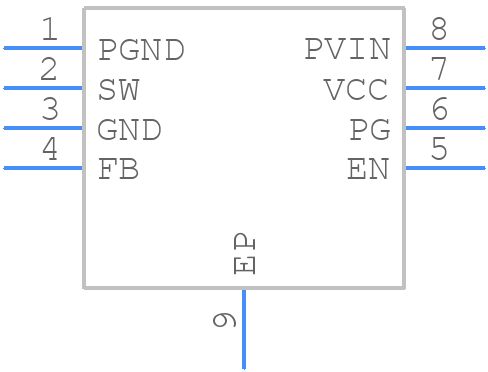

Use the download button to access the LX7167CLD-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LX716,
or try a keyword search, such as Switching Regulator or Controllers
