LXDC2UR12A-118 footprint, schematic symbol and 3D model by Murata Electronics

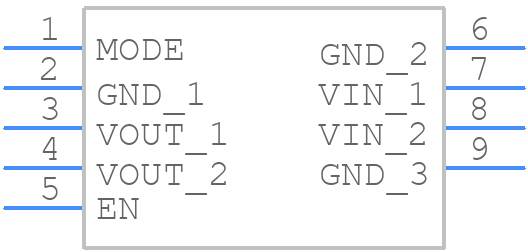

Symbol

click to zoom

PCB Footprints

LXDC2UR12A-118 - Murata Electronics PCB footprint - Other - Other - LXDC2UR12A-118

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LXDC2UR12A-118
Part Number LXDC2UR12A-118
Manufacturer Murata Electronics
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - LXDC2UR12A-118
Released Date Aug 31, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LXDC2UR12A-118 Details

Manufacturer Part Number:
LXDC2UR12A-118
Part Life Cycle Code:
Obsolete
Package Description:
PACKAGE-9
ECCN Code:
EAR99
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
0
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.7 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
R-XXMA-B9
Length:
2.5 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
1.224 V
Output Voltage-Min:
1.176 V
Output Voltage-Nom:
1.2 V
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
BUTT
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
0.72 W
Trim/Adjustable Output:
NO
Width:
2.3 mm

LXDC2UR12A-118 Frequently Asked Questions (FAQs)

Murata provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
Proper thermal management is crucial for the LXDC2UR12A-118. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The datasheet provides thermal resistance and junction temperature ratings to help with thermal design.
The datasheet provides general guidelines for input and output capacitors, but specific requirements may vary depending on the application. Murata recommends using low-ESR capacitors with a minimum capacitance of 10uF for input and output filtering. The capacitor selection should be based on the specific application's requirements and operating conditions.
The LXDC2UR12A-118 has built-in overcurrent protection, but it's essential to implement additional fault detection and protection mechanisms in the system design. This can include using external current sense resistors, voltage monitors, and fault detection circuits to ensure reliable operation and prevent damage to the device.
The LXDC2UR12A-118 is designed to meet CISPR 22 Class B emissions standards, but additional EMI and EMC considerations are necessary for system-level compliance. This includes using proper shielding, filtering, and layout techniques to minimize radiated and conducted emissions.

Trust Checks

Expert Contribution

System Verified

Community Approved

LXDC2UR12A-118 Overview

Use the download button to access the LXDC2UR12A-118 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LXDC2, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
