LXDC2UR18A-120 - Murata Electronics

Description: Non-Isolated DC/DC Converters 1.8Vout 600mA 2.5x2.3mm micro DCDC

Download LXDC2UR18A-120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

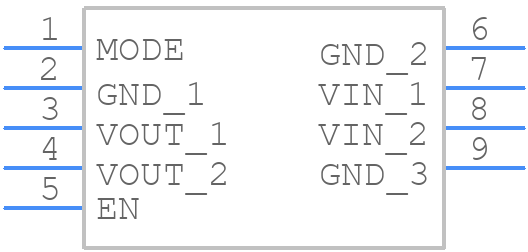

Symbol
LXDC2UR18A-120 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LXDC2UR18A-120 - Murata Electronics PCB footprint - Other - Other - LXDC2UR18A-120-1
click to zoom
3D Models
LXDC2UR18A-120 - Murata Electronics - 3D model - Other - LXDC2UR18A-120-1
click to zoom

LXDC2UR18A-120 Details

  • Manufacturer Part Number:

    LXDC2UR18A-120

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-XXMA-B9

  • Length:

    2.5 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.836 V

  • Output Voltage-Min:

    1.764 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BUTT

  • Terminal Position:

    UNSPECIFIED

  • Total Power Output-Max:

    1.08 W

  • Trim/Adjustable Output:

    NO

  • Width:

    2.3 mm

LXDC2UR18A-120 Frequently Asked Questions (FAQs)

  • The recommended land pattern for LXDC2UR18A-120 is a rectangular pad with a size of 3.5mm x 2.5mm, with a non-solder mask defined (NSMD) pad shape.
  • To ensure reliability in high-temperature applications, it is recommended to follow the recommended reflow profile, use a thermal interface material (TIM) with a high thermal conductivity, and ensure good thermal management on the PCB.
  • Yes, the LXDC2UR18A-120 is designed to withstand vibrations up to 10G, but it's recommended to follow the recommended mounting and soldering guidelines to ensure reliability in high-vibration environments.
  • The maximum allowable current for the LXDC2UR18A-120 is 1.2A, but it's recommended to derate the current based on the operating temperature and other environmental factors.
  • The LXDC2UR18A-120 should be stored in a dry, cool place, away from direct sunlight and moisture. During shipping, it's recommended to use anti-static packaging and follow ESD precautions to prevent damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LXDC2UR18A-120 Overview

Use the download button to access the LXDC2UR18A-120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LXDC2, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
