LXDC2XQ33A-254 - Murata Electronics

Description: Non-Isolated DC/DC Converters 3.3Vout 1.5A 2.6x2.8mm micro DCDC

Download LXDC2XQ33A-254 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

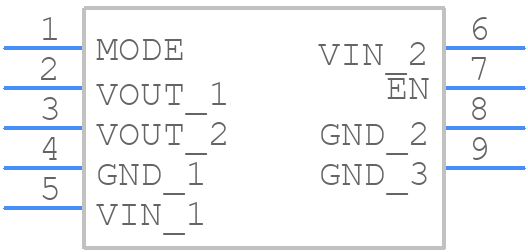

Symbol
LXDC2XQ33A-254 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LXDC2XQ33A-254 - Murata Electronics PCB footprint - Other - Other - LXDC2XQ33A-254-1
click to zoom
3D Models
LXDC2XQ33A-254 - Murata Electronics - 3D model - Other - LXDC2XQ33A-254-1
click to zoom

LXDC2XQ33A-254 Details

  • Manufacturer Part Number:

    LXDC2XQ33A-254

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.7 V

  • JESD-30 Code:

    R-XXMA-B9

  • Length:

    2.8 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.416 V

  • Output Voltage-Min:

    3.218 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.14 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BUTT

  • Terminal Position:

    UNSPECIFIED

  • Total Power Output-Max:

    4.95 W

  • Trim/Adjustable Output:

    NO

  • Width:

    2.6 mm

LXDC2XQ33A-254 Frequently Asked Questions (FAQs)

  • The recommended land pattern for LXDC2XQ33A-254 is a rectangular pad with a size of 2.5mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape.
  • To handle thermal considerations, ensure good thermal conductivity between the component and the PCB by using a thermal via or a thermal pad, and consider using a thermal interface material (TIM) if necessary.
  • The maximum operating temperature range for LXDC2XQ33A-254 is -40°C to +125°C, but it's recommended to operate within -20°C to +85°C for optimal performance.
  • Yes, LXDC2XQ33A-254 is designed to withstand vibrations up to 10G, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and soldering.
  • To ensure reliability in a humid environment, follow the manufacturer's guidelines for moisture sensitivity, and consider using a conformal coating or potting compound to protect the component from moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LXDC2XQ33A-254 Overview

Use the download button to access the LXDC2XQ33A-254 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LXDC2, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
