Part Image

LXDC55FAAA-203 - Murata Electronics

Description: Non-Isolated DC/DC Converters Variable Output 1.5A 5x5.7mm, uDC-DC

Download LXDC55FAAA-203 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

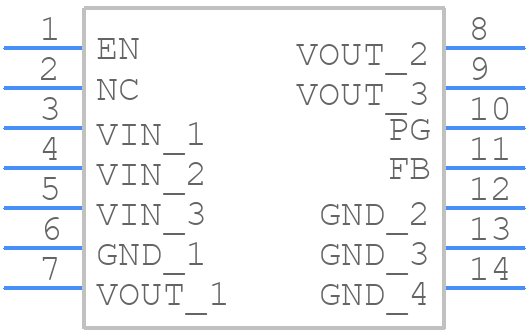

Symbol
LXDC55FAAA-203 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LXDC55FAAA-203 - Murata Electronics PCB footprint - Other - Other - LXDC55FAAA-203-5
click to zoom
3D Models
LXDC55FAAA-203 - Murata Electronics - 3D model - Other - LXDC55FAAA-203-5
click to zoom

LXDC55FAAA-203 Details

  • Manufacturer Part Number:

    LXDC55FAAA-203

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-14

  • ECCN Code:

    EAR99

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    SEATED HEIGHT-NOM

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XXMA-X14

  • Length:

    5.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.3 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.1 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Total Power Output-Max:

    4.95 W

  • Trim/Adjustable Output:

    NO

  • Width:

    5 mm

LXDC55FAAA-203 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the LXDC55FAAA-203 is a rectangular pad with a size of 2.5mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape.
  • To handle thermal considerations, ensure a good thermal connection to a solid ground plane or a thermal pad on the PCB. A thermal via array can also be used to improve heat dissipation.
  • The maximum operating temperature range for the LXDC55FAAA-203 is -40°C to +125°C, with a storage temperature range of -40°C to +150°C.
  • Yes, the LXDC55FAAA-203 is designed to withstand high-vibration environments, with a vibration resistance of 10G (10-2000Hz) and a shock resistance of 100G (11ms).
  • To ensure reliability in a humid environment, apply a conformal coating to the PCB, and consider using a moisture-resistant coating on the LXDC55FAAA-203. Also, ensure good PCB design practices, such as using a ground plane and minimizing signal trace lengths.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LXDC55FAAA-203 Overview

Use the download button to access the LXDC55FAAA-203 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LXDC5, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
