LXES4XBAA6-027 - Murata Electronics

Description: Murata LXES Series 5.5 V SMD Power Line Filter, with Solder Pad Terminals

Download LXES4XBAA6-027 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

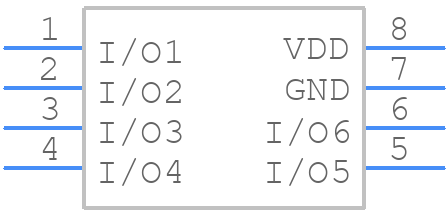

LXES4XBAA6-027 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LXES4XBAA6-027 - Murata Electronics PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8L
click to zoom
3D Models
LXES4XBAA6-027 - Murata Electronics - 3D model - Small Outline Packages - MSOP-8L
click to zoom

LXES4XBAA6-027 Details

  • Manufacturer Part Number:

    LXES4XBAA6-027

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT PACKAGE-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Max:

    10 V

  • Breakdown Voltage-Min:

    6 V

  • Breakdown Voltage-Nom:

    8 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    S-PDSO-G8

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    5.5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED
