Part Image

LXRW19V201-058 - Murata Electronics

Description: Trimmer / Variable Capacitors 5.3VDC 200pF DFN 1.3x0.9mm

Download LXRW19V201-058 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

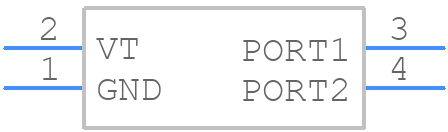

LXRW19V201-058 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LXRW19V201-058 - Murata Electronics PCB footprint - Other - Other - LXRW19V201-058-4
click to zoom
3D Models
LXRW19V201-058 - Murata Electronics - 3D model - Other - LXRW19V201-058-4
click to zoom

LXRW19V201-058 Details

  • Manufacturer Part Number:

    LXRW19V201-058

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Adjuster Orientation:

    VERTICAL

  • Capacitance-Max:

    200 pF

  • Capacitance-Min:

    100 pF

  • Capacitor Type:

    VARIABLE CAPACITOR

  • Height:

    0.4 mm

  • Length:

    1.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated (DC) Voltage (URdc):

    5.3 V

  • Size Code:

    0504

  • Surface Mount:

    YES

  • Terminal Shape:

    ONE SURFACE

  • Width:

    0.9 mm

LXRW19V201-058 Frequently Asked Questions (FAQs)

  • The recommended land pattern for LXRW19V201-058 is a rectangular pad with a size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape.
  • While LXRW19V201-058 is rated for operation up to 125°C, it's recommended to derate the voltage and current ratings at high temperatures to ensure reliability. Consult the datasheet and application notes for more information.
  • The ESR of LXRW19V201-058 is specified in the datasheet. To minimize the impact of ESR, use a low-ESR capacitor, optimize the PCB layout, and consider using a capacitor with a lower ESR value if possible.
  • Yes, LXRW19V201-058 is compatible with lead-free soldering processes, such as SAC305 (Sn-Ag-Cu) and other RoHS-compliant solder alloys.
  • Store LXRW19V201-058 in a dry, cool place, away from direct sunlight and moisture. Avoid exposing the components to extreme temperatures, humidity, or physical stress.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LXRW19V201-058 Overview

Use the download button to access the LXRW19V201-058 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LXRW1, or try a keyword search, such as Variable Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
