LXSR25-NPS - LEM

Description: For the electronic measurement of current: DC, AC, pulsed..., with galvanic separation between the primary and the secondary circuit.

Download LXSR25-NPS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

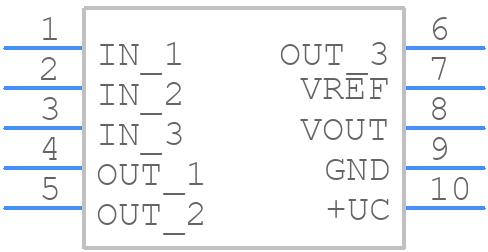

LXSR25-NPS - LEM - PCB symbol
click to zoom
PCB Footprints

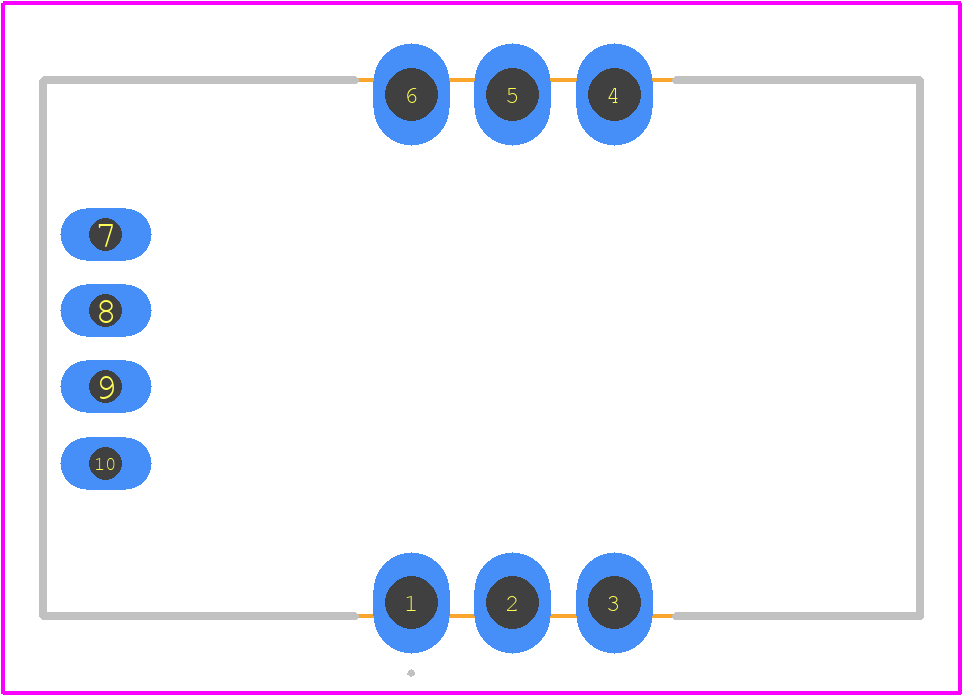

LXSR25-NPS - LEM PCB footprint - Other - Other - 21.91x13.4x23.7mm_1
click to zoom
3D Models
LXSR25-NPS - LEM - 3D model - Other - 21.91x13.4x23.7mm_1
click to zoom

LXSR25-NPS Details

  • Manufacturer Part Number:

    LXSR25-NPS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-10

  • Manufacturer:

    LEM Holdings SSA

  • Body Breadth:

    13.4 mm

  • Body Height:

    23.2 mm

  • Body Length or Diameter:

    21.91 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.25-4.75V

  • Output Type:

    OUTPUT VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    NO
