LYT5218D-TL - Power Integrations

Description: POWER INTEGRATIONS - LYT5218D-TL - LED DRIVER, MUTLI-TOPOLOGY, 25W, SOIC-16

Download LYT5218D-TL Model

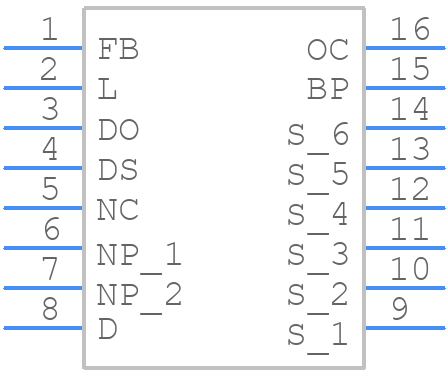

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LYT5218D-TL - Power Integrations PCB footprint - Small Outline Packages - Small Outline Packages - LYT5218D-TL
click to zoom
3D Models
LYT5218D-TL - Power Integrations  - 3D model - Small Outline Packages - LYT5218D-TL
click to zoom

LYT5218D-TL Details

  • Manufacturer Part Number:

    LYT5218D-TL

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16/14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    7.89

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    9.91 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SOP14/16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.69 mm

  • Supply Voltage-Max:

    308 V

  • Supply Voltage-Min:

    90 V

  • Supply Voltage-Nom:

    115 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

LYT5218D-TL Frequently Asked Questions (FAQs)

  • Power Integrations provides a recommended PCB layout in their application note AN-63, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. Additionally, ensure that the input voltage rises and falls slowly enough to prevent inrush currents and voltage spikes.
  • The maximum allowed voltage on the BYPASS pin is 6V. Exceeding this voltage can damage the internal voltage regulator and affect the overall reliability of the device.
  • While the LYT5218D-TL is rated for operation up to 150°C, it's essential to consider the derating curves and thermal management guidelines provided in the datasheet to ensure reliable operation in high-temperature environments.
  • Power Integrations provides a troubleshooting guide in their application note AN-55, which covers common issues and their solutions. Additionally, ensure that the PCB layout and component selection meet the recommended guidelines, and verify that the input voltage and current are within the specified limits.
