LYT5226D-TL - Power Integrations

Description: LED Lighting Drivers LED Driver Non-Dimm PFC CC output, 16W

Download LYT5226D-TL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

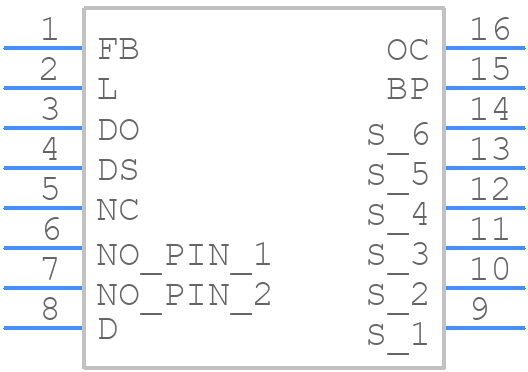

LYT5226D-TL - Power Integrations - PCB symbol
click to zoom
PCB Footprints
LYT5226D-TL - Power Integrations PCB footprint - Small Outline Packages - Small Outline Packages - LYT5218D-TL
click to zoom
3D Models
LYT5226D-TL - Power Integrations - 3D model - Small Outline Packages - LYT5218D-TL
click to zoom

LYT5226D-TL Details

  • Manufacturer Part Number:

    LYT5226D-TL

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16/14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    7.89

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    9.91 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SOP14/16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.69 mm

  • Supply Voltage-Max:

    308 V

  • Supply Voltage-Min:

    90 V

  • Supply Voltage-Nom:

    115 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

LYT5226D-TL Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
  • Ensure that the input voltage rises and falls monotonically, and add a soft-start circuit to limit the inrush current during start-up. Also, add a voltage supervisor to ensure that the device is fully powered up before enabling the output.
  • The maximum allowed output capacitance is 220uF. Exceeding this value may cause instability or oscillations in the output voltage.
  • Use a shielded transformer, add a common-mode choke, and ensure that the PCB layout is optimized for minimal radiation. Also, add EMI filters and shielding to the input and output lines.
  • The recommended input voltage range is 85-265VAC. Operating outside this range may affect the device's reliability and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LYT5226D-TL Overview

Use the download button to access the LYT5226D-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LYT52, or try a keyword search, such as Display Drivers
