The recommended storage condition for LZC-03MD07-0000 is in a dry, dark place with a temperature range of -20°C to 30°C and relative humidity below 60%.
While LZC-03MD07-0000 can operate up to 85°C, it's not recommended for high-temperature applications above 70°C without proper heat management and derating. Consult with ams OSRAM Group for specific guidance.
ams OSRAM Group recommends using a precision alignment tool or fixture to ensure accurate optical axis alignment during assembly. Refer to the application note or contact ams OSRAM Group for guidance.
ams OSRAM Group recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 4°C/s. Consult the datasheet or application note for more details.
While LZC-03MD07-0000 is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection against environmental factors such as moisture, UV, and temperature extremes. Consult with ams OSRAM Group for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LZC-03MD07-0000 Overview

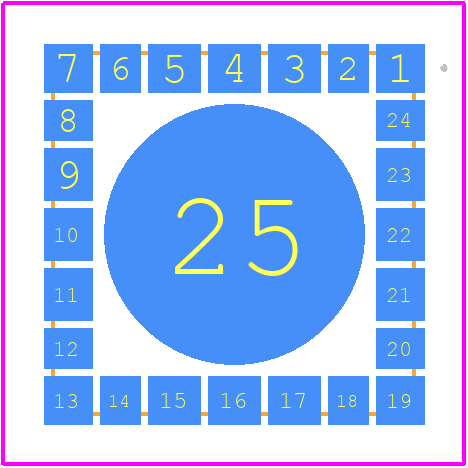

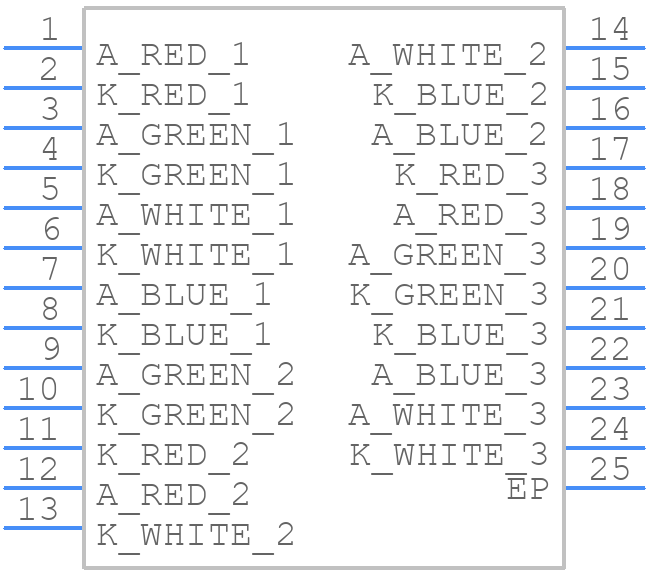

Use the download button to access the LZC-03MD07-0000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LZC-0,
or try a keyword search, such as Visible LEDs
