The recommended PCB layout is to keep the high-frequency components (e.g., capacitors, inductors) close to the IC, and use a solid ground plane to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure accurate current measurement, use a high-quality, low-impedance current sensing resistor (e.g., 1 mΩ) and place it as close as possible to the IC. Also, ensure that the sensing resistor is properly calibrated and that the PCB layout is designed to minimize noise and EMI.
The maximum operating temperature range for the LZSR200-TP/SP1 is -40°C to +125°C. However, it's recommended to operate the device within the -20°C to +85°C range for optimal performance and reliability.
Yes, the LZSR200-TP/SP1 is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To troubleshoot common issues, start by checking the PCB layout and ensuring that it meets the recommended design guidelines. Verify that the current sensing resistor is properly calibrated and that the device is operated within the recommended temperature range. Also, check for noise sources and ensure that the device is properly shielded and filtered.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LZSR200-TP/SP1 Overview

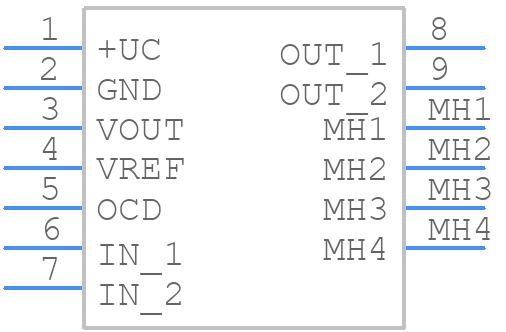

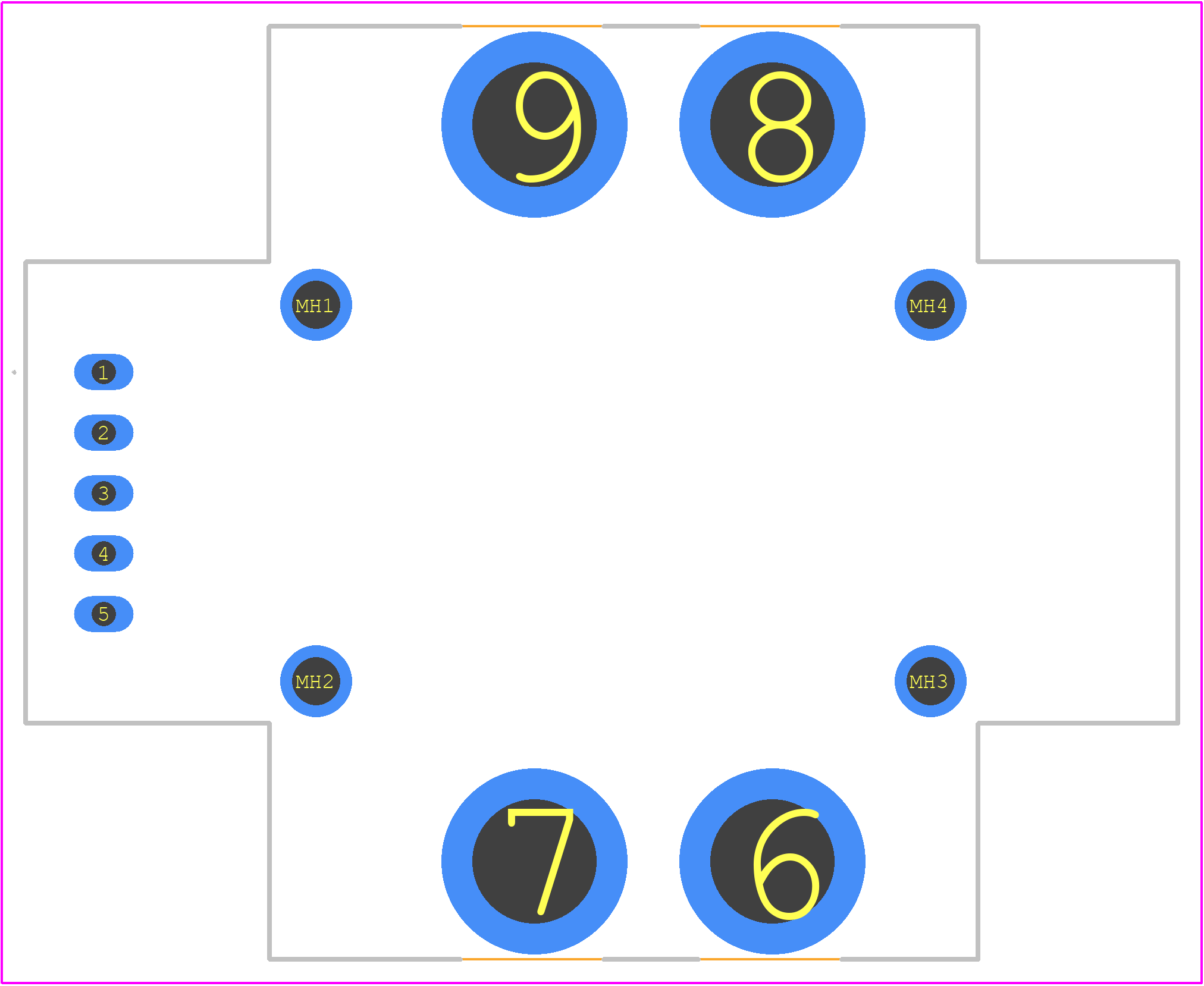

Use the download button to access the LZSR200-TP/SP1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LZSR2,
or try a keyword search, such as Other Sensors/Transducers
