- Part Number M-FIAM5BM21
- Manufacturer VICOR
- Pin Count 9
- Part Category Filter
- Package Category Other
- Footprint Name Other - M-FIAM5BM21-1
- Released Date Aug 3, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
M-FIAM5BM21 Details
-
Manufacturer Part Number:
M-FIAM5BM21
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
Part Package Code:
DMA
-
Pin Count:
9
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Vicor Corporation
-
YTEOL:
4.2
-
Filter Type:
DATA LINE FILTER MODULE
M-FIAM5BM21 Frequently Asked Questions (FAQs)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The component should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
To ensure reliable start-up and shutdown, it is recommended to follow a soft-start sequence, gradually increasing the input voltage to the module. A slow ramp-up time of around 10-20 ms is recommended to prevent inrush currents and ensure reliable start-up.
-
Operating the module outside of the recommended input voltage range can lead to reduced efficiency, increased heat generation, and potentially even damage to the module. It is recommended to operate the module within the specified input voltage range to ensure optimal performance and reliability.
-
To troubleshoot issues with the module's output voltage regulation, check the input voltage, output load, and module temperature. Ensure that the input voltage is within the recommended range, the output load is within the specified range, and the module temperature is within the recommended operating range.
-
The module is designed to meet CISPR 22 Class B emissions standards. To minimize EMI and RFI, it is recommended to use a shielded enclosure, keep the module away from sensitive circuits, and use EMI filters or shielding on the input and output lines.
Trust Checks
Community Provided
System Verified
Community Approved
M-FIAM5BM21 Overview

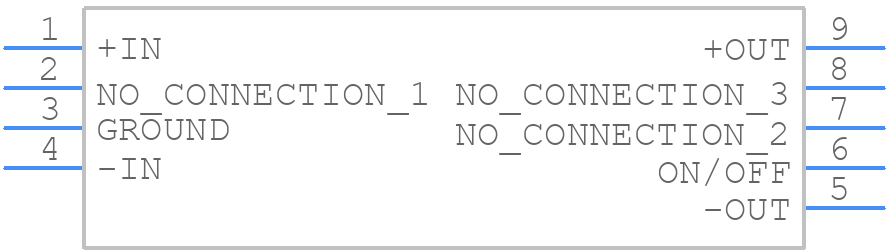

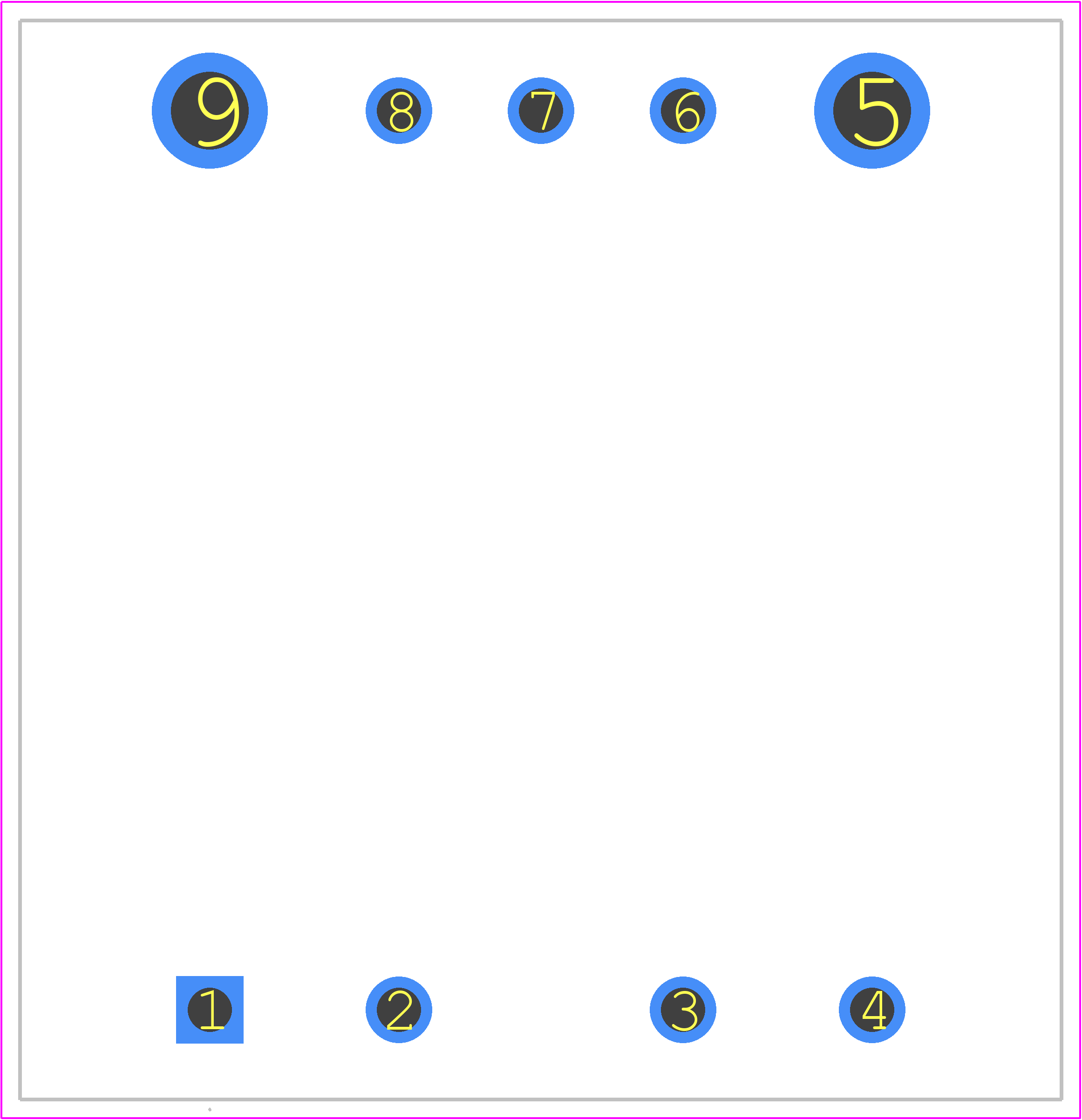

Use the download button to access the M-FIAM5BM21 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M-FIA,
or try a keyword search, such as Data Line Filters
