- Part Number M-FIAM7BM21
- Manufacturer VICOR
- Pin Count 9
- Part Category Filter
- Package Category Other
- Footprint Name Other - M-FIAM7BM21-3
- Released Date Feb 22, 2023
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
M-FIAM7BM21 Details
-
Manufacturer Part Number:
M-FIAM7BM21
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
Part Package Code:
MODULE
-
Pin Count:
9
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Vicor Corporation
-
YTEOL:
7
-
Filter Type:
DATA LINE FILTER MODULE
M-FIAM7BM21 Frequently Asked Questions (FAQs)
-
Vicor recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to ensure good thermal conductivity.
-
To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current, and a minimum input capacitance of 10uF to ensure stable operation.
-
The maximum allowed input voltage ripple for the M-FIAM7BM21 is 10% of the nominal input voltage, with a maximum deviation of ±5%.
-
Yes, the M-FIAM7BM21 is rated for operation up to 100°C, but derating is required above 85°C. Consult the datasheet for specific derating guidelines.
-
Vicor recommends using an oscilloscope to monitor the input and output voltages, and checking for proper PCB layout and component selection. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
Community Provided
System Verified
Community Approved
M-FIAM7BM21 Overview

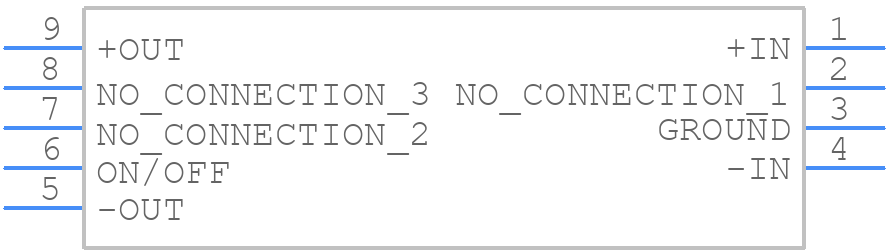

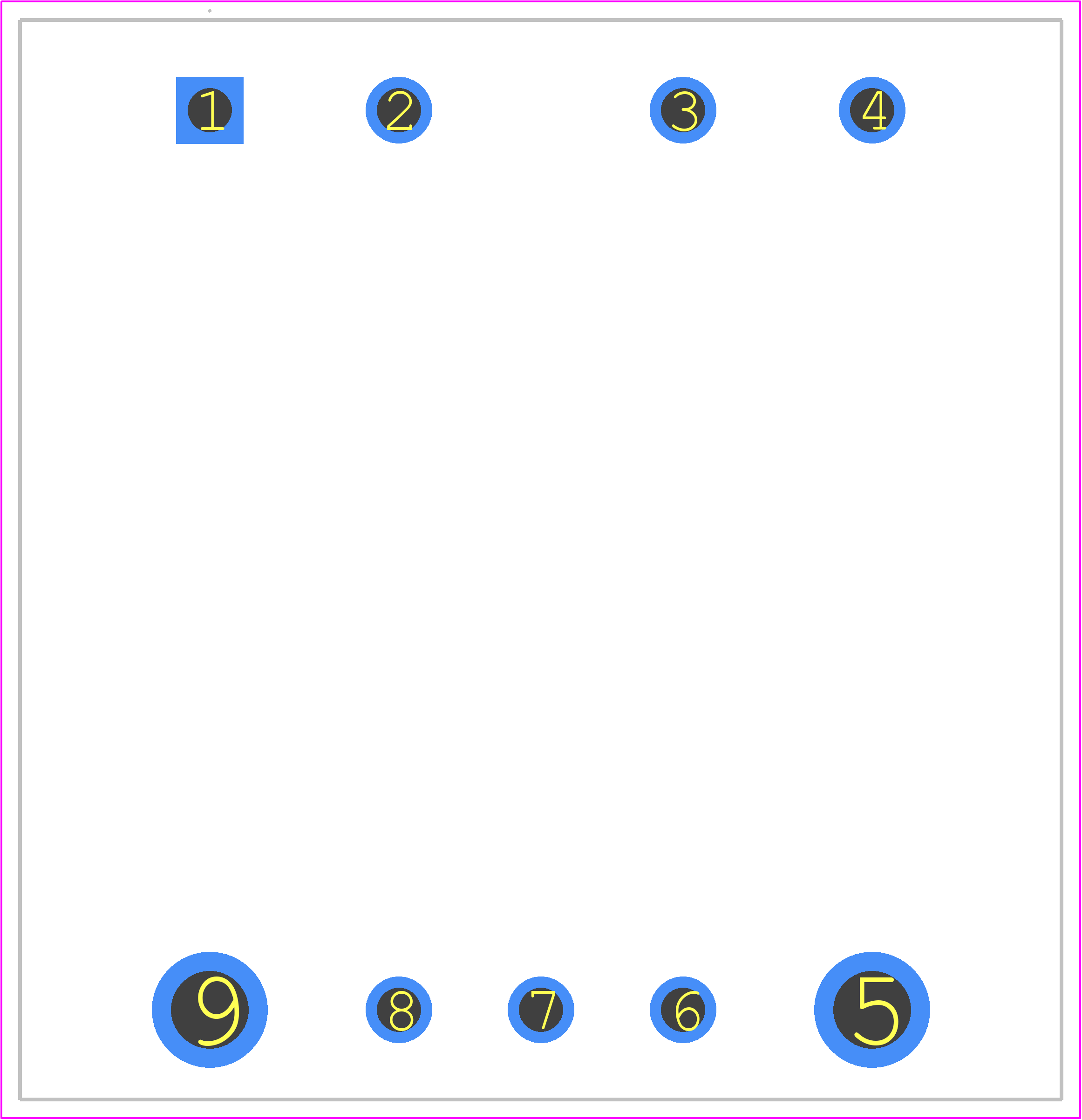

Use the download button to access the M-FIAM7BM21 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M-FIA,
or try a keyword search, such as Data Line Filters
