M0216SD-162SDAR2-1 - Newhaven Display

Description: Vacuum Fluorescent Displays - VFD 2 x 16 80.0 x 36.0 x 18.0

Download M0216SD-162SDAR2-1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this M0216SD-162SDAR2-1 model

Email notifications will be applied after download.

Send part feedback

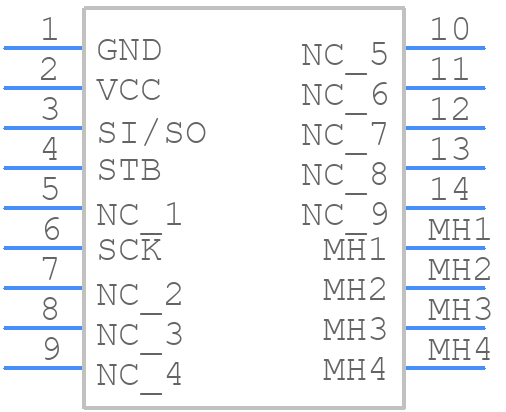

Symbol

M0216SD-162SDAR2-1 - Newhaven Display - PCB symbol

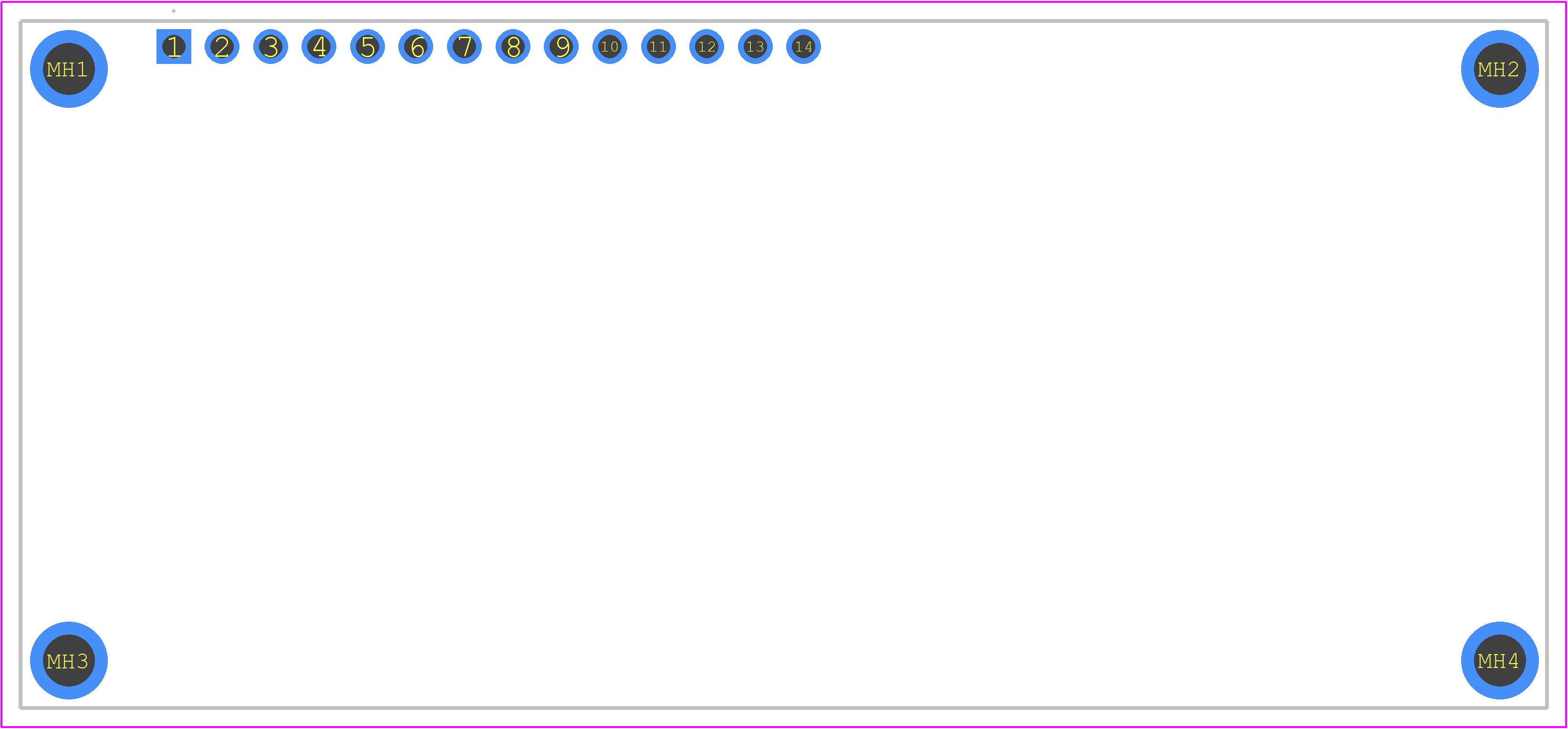

PCB Footprints

M0216SD-162SDAR2-1 - Newhaven Display PCB footprint - Other - Other - M0216SD-162SDAR2-1-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for M0216SD-162SDAR2-1
Part Number M0216SD-162SDAR2-1
Manufacturer Newhaven Display
Pin Count 18
Part Category Display
Package Category Other
Footprint Name Other - M0216SD-162SDAR2-1-2
Released Date Nov 23, 2023
Last Modified Date Nov 24, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

M0216SD-162SDAR2-1 Details

Manufacturer Part Number:
M0216SD-162SDAR2-1
Part Life Cycle Code:
Obsolete
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China
Manufacturer:
Newhaven Display International
YTEOL:
0

Trust Checks

Community Provided

System Verified

Community Approved

M0216SD-162SDAR2-1 Overview

Use the download button to access the M0216SD-162SDAR2-1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M0216, or try a keyword search, such as Displays
