The recommended oscillator crystal frequency for the M032FC1AE is 12 MHz or 24 MHz, depending on the application and clock speed requirements.
To configure the BOD for optimal POR behavior, set the BOD voltage threshold to 2.5V or 2.7V, and adjust the BOD hysteresis to 50mV or 100mV, depending on the specific application requirements.
The maximum allowed voltage on the M032FC1AE's GPIO pins is VCC + 0.5V, where VCC is the supply voltage. Exceeding this voltage may cause damage to the device.
To implement a WDT on the M032FC1AE, enable the WDT module, set the WDT clock source, and configure the WDT timeout period using the WDTCSR register. Additionally, ensure that the WDT is periodically reset or fed to prevent a system reset.
The maximum current that can be sourced or sunk by the M032FC1AE's GPIO pins is 20mA. Exceeding this current may cause damage to the device or affect its reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M032FC1AE Overview

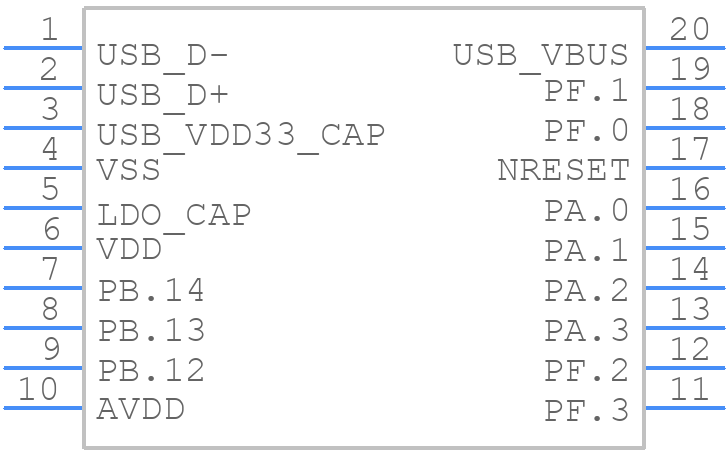

Use the download button to access the M032FC1AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M032F,
or try a keyword search, such as Microcontrollers
