M032LC2AE - Nuvoton

Description: ARM Microcontrollers - MCU 32bit M0 Flash/RAM=256KB/32KB+SPROM 2048B+12xADC+6UART+USB

Download M032LC2AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

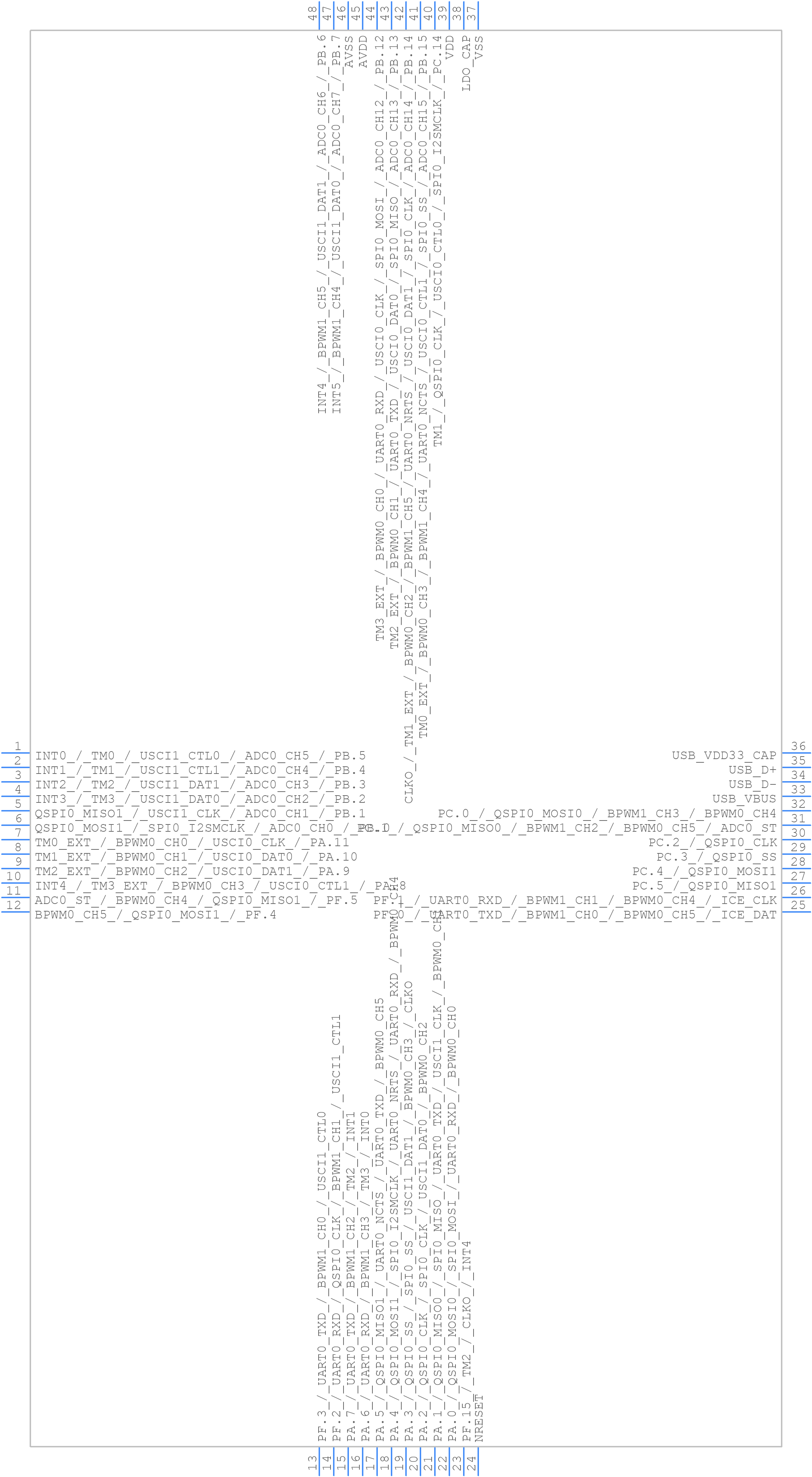

Symbol
M032LC2AE - Nuvoton - PCB symbol
click to zoom
PCB Footprints
M032LC2AE - Nuvoton PCB footprint - Quad Flat Packages - Quad Flat Packages - 48 LEAD LQFP(7X7X1.4MM FOOTPRINT 2.0MM)_2023
click to zoom
3D Models
M032LC2AE - Nuvoton - 3D model - Quad Flat Packages - 48 LEAD LQFP(7X7X1.4MM FOOTPRINT 2.0MM)_2023
click to zoom

M032LC2AE Details

  • Manufacturer Part Number:

    M032LC2AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2019-11-18

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    8

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M032LC2AE Overview

Use the download button to access the M032LC2AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M032L, or try a keyword search, such as Microcontrollers
