- Part Number M0516LDN
- Manufacturer Nuvoton
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - LQFP-48 (7x7x1.4mm2 10.1 Footprint 2.0mm)
- Released Date Oct 31, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
M0516LDN Details
-
Manufacturer Part Number:
M0516LDN
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
7
-
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER, RISC
M0516LDN Frequently Asked Questions (FAQs)
-
The M0516LDN can operate up to 50 MHz, but the actual frequency depends on the clock source and configuration.
-
The clock source can be configured using the Clock Control Register (CLK_CFG) and the Clock Source Select Register (CLK_SRC_SEL). Refer to the datasheet for specific register settings.
-
The maximum current consumption of the M0516LDN is approximately 15mA at 3.3V and 50MHz, but this can vary depending on the operating mode and peripheral usage.
-
The ADC on the M0516LDN is a 12-bit successive approximation ADC. To use it, configure the ADC clock, select the channel, and start the conversion using the ADC control registers. Refer to the datasheet for specific register settings and conversion formulas.
-
Yes, the M0516LDN can be used with an external crystal oscillator. The external crystal oscillator can be connected to the XT1 and XT2 pins, and the clock source can be selected using the Clock Source Select Register (CLK_SRC_SEL).
Trust Checks
Community Provided
System Verified
Community Approved
M0516LDN Overview

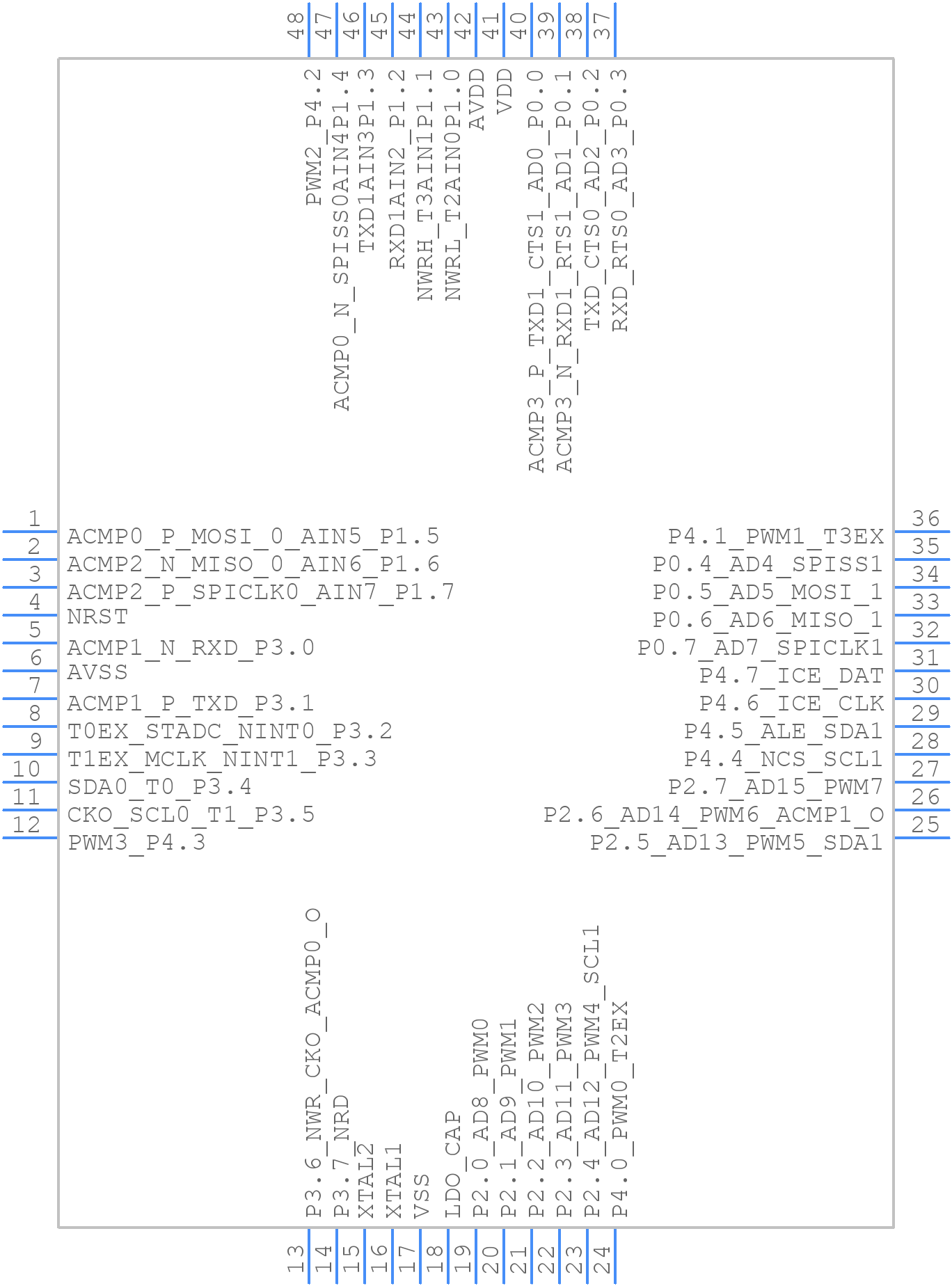

Use the download button to access the M0516LDN schematic symbol, PCB footprint, and 3D model.
