M12A-08PFFP-SF8001 - Amphenol

Description: Conn M12 Circular F 8 POS Solder ST Thru-Hole 8 Terminal 1 Port

Download M12A-08PFFP-SF8001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M12A-08PFFP-SF8001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

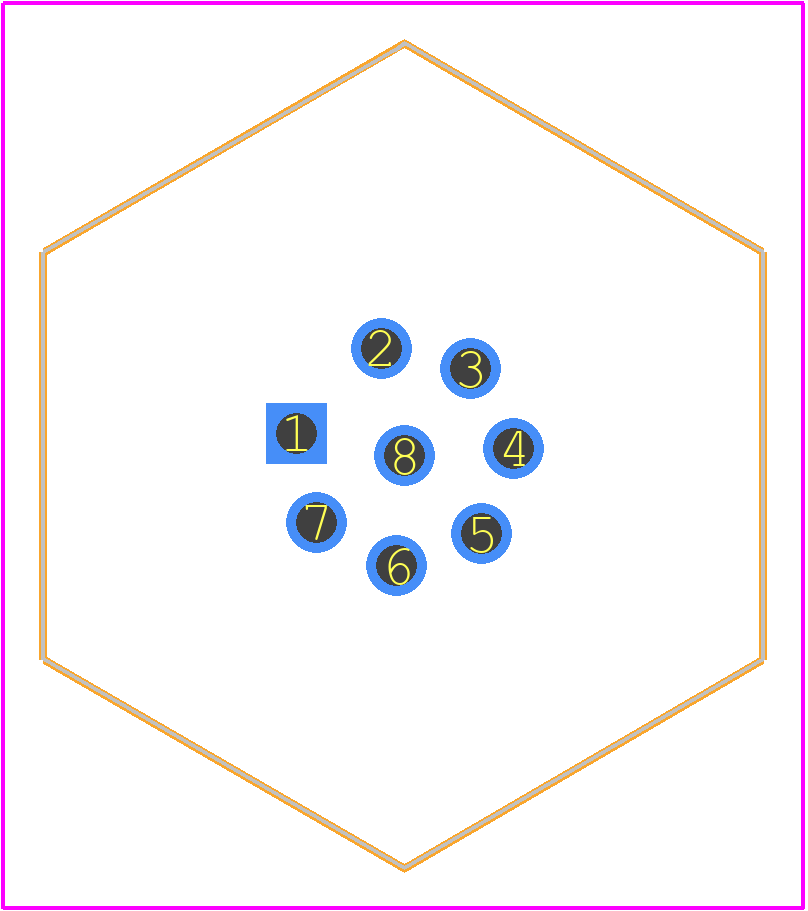

M12A-08PFFP-SF8001 - Amphenol PCB footprint - Other - Other - M12A-08PFFP-SF8001
click to zoom
3D Models
M12A-08PFFP-SF8001 - Amphenol - 3D model - Other - M12A-08PFFP-SF8001
click to zoom

M12A-08PFFP-SF8001 Details

  • Manufacturer Part Number:

    M12A-08PFFP-SF8001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

M12A-08PFFP-SF8001 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm to 1.2 Nm (5-10 in-lbs) for the M12A-08PFFP-SF8001 connector, but it's always best to consult the specific application and Amphenol's guidelines for the specific connector and cable assembly.
  • Yes, the M12A-08PFFP-SF8001 connector is designed for harsh environments and is suitable for outdoor use. It has an IP67 rating, which means it can withstand dust and water immersion up to 1 meter for 30 minutes.
  • Yes, the M12A-08PFFP-SF8001 connector is designed for high-speed data transmission and can support data rates up to 10 Gbps. However, the actual data transmission speed may vary depending on the specific application and cable assembly.
  • Yes, the M12A-08PFFP-SF8001 connector is compatible with other M12 connectors that meet the IEC 61076-2-101 standard. However, it's always best to verify compatibility with the specific connector and application.
  • The operating temperature range for the M12A-08PFFP-SF8001 connector is -40°C to 85°C (-40°F to 185°F). However, the storage temperature range is -50°C to 100°C (-58°F to 212°F).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M12A-08PFFP-SF8001 Overview

Use the download button to access the M12A-08PFFP-SF8001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M12A-, or try a keyword search, such as Other Circular Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
