M12A-08PMMR-SF7003 - Amphenol

Description: Sensor Cables / Actuator Cables PANEL SCREW 8 PIN M CONN M PIN

Download M12A-08PMMR-SF7003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M12A-08PMMR-SF7003 - Amphenol - PCB symbol
click to zoom
PCB Footprints

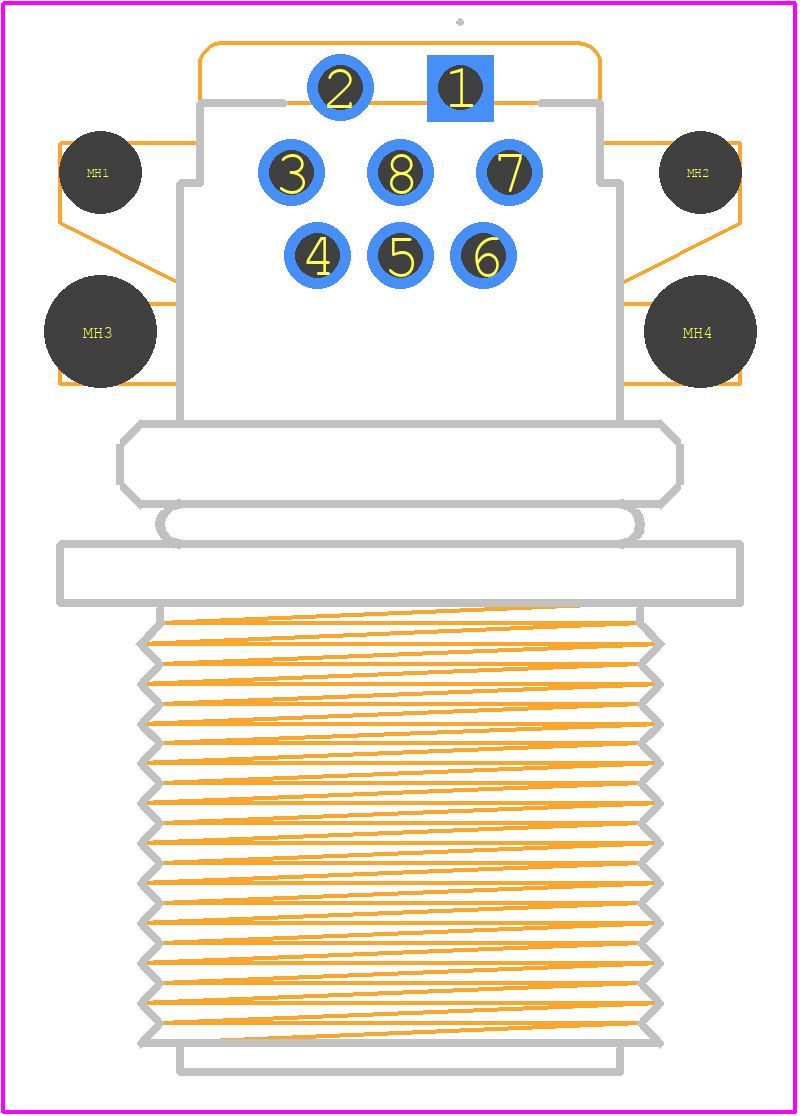

M12A-08PMMR-SF7003 - Amphenol PCB footprint - Other - Other - M12A-08PMMR-SF7003-1
click to zoom
3D Models
M12A-08PMMR-SF7003 - Amphenol - 3D model - Other - M12A-08PMMR-SF7003-1
click to zoom

M12A-08PMMR-SF7003 Details

  • Manufacturer Part Number:

    M12A-08PMMR-SF7003

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    2

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    COPPER ALLOY

  • JESD-609 Code:

    e4

M12A-08PMMR-SF7003 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm to 1.2 Nm (5-10 in-lbs) for the M12A-08PMMR-SF7003 connector, but it's always best to consult the specific application and Amphenol's guidelines for the specific product.
  • Yes, the M12A-08PMMR-SF7003 connector is designed for harsh environments and is suitable for outdoor use, with an IP67 rating for protection against dust and water ingress.
  • Yes, the M12A-08PMMR-SF7003 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G acceleration.
  • The operating temperature range for the M12A-08PMMR-SF7003 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the M12A-08PMMR-SF7003 connector is compatible with other M12 connectors that meet the IEC 61076-2-101 standard.
