Please enter a minimum 3 letters or numbers
Technical Content
Part Image

M12A-12PMMP-SF8001 - Amphenol

Description: Sensor Cables / Actuator Cables M12 PANEL PCB CONN 12PIN M CONN M PIN

Download M12A-12PMMP-SF8001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M12A-12PMMP-SF8001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

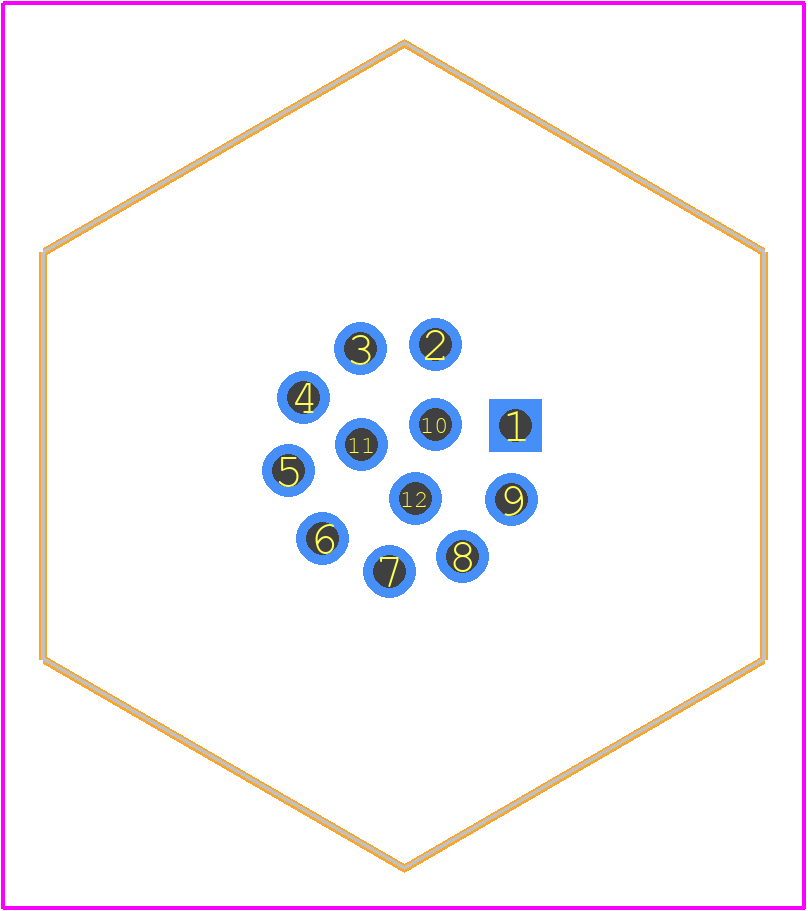

M12A-12PMMP-SF8001 - Amphenol PCB footprint - Other - Other - M12A-12PMMP-SF8002
click to zoom
3D Models
M12A-12PMMP-SF8001 - Amphenol - 3D model - Other - M12A-12PMMP-SF8002
click to zoom

M12A-12PMMP-SF8001 Details

  • Manufacturer Part Number:

    M12A-12PMMP-SF8001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9

  • Additional Feature:

    RATED CURRENT(SIGNAL): 1.5A; RATED VOLTAGE: 30VAC/VDC

  • Backshell Type:

    SOLID

  • Body Depth:

    0.827 inch

  • Body Diameter:

    0.606 inch

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Environmental Characteristics:

    CORROSION RESISTANT

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    WATERPROOF

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

M12A-12PMMP-SF8001 Frequently Asked Questions (FAQs)

  • The recommended torque value for mating and unmating the M12A-12PMMP-SF8001 connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the M12A-12PMMP-SF8001 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and vibration resistance of 10g (10-2000 Hz).
  • The M12A-12PMMP-SF8001 connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the M12A-12PMMP-SF8001 connector is designed for high-speed data transmission, with a bandwidth of up to 1 Gbps and support for Category 5e and Category 6A Ethernet cables.
  • The M12A-12PMMP-SF8001 connector is designed to be compatible with other M12 connectors that meet the IEC 61076-2-101 standard, but compatibility should be verified with the specific manufacturer and application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M12A-12PMMP-SF8001 Overview

Use the download button to access the M12A-12PMMP-SF8001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M12A-, or try a keyword search, such as Other Circular Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.

Parts related to M12A-12PMMP-SF8001

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
