M12B-05PFFP-SF8001 - Amphenol

Description: Conn Circular F 5 POS Crimp ST Panel Mount 5 Terminal 1 Port

Download M12B-05PFFP-SF8001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M12B-05PFFP-SF8001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

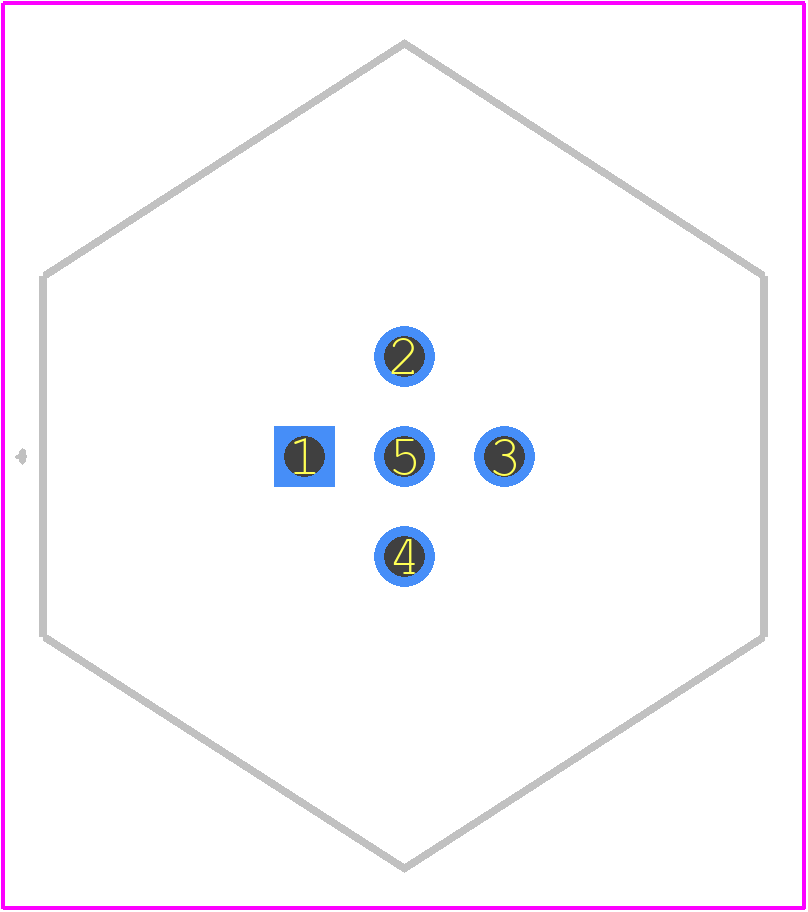

M12B-05PFFP-SF8001 - Amphenol PCB footprint - Other - Other - M12B-05PFFP-SF8001-2
click to zoom
3D Models
M12B-05PFFP-SF8001 - Amphenol - 3D model - Other - M12B-05PFFP-SF8001-2
click to zoom

M12B-05PFFP-SF8001 Details

  • Manufacturer Part Number:

    M12B-05PFFP-SF8001

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    CIRCULAR CONNECTOR

M12B-05PFFP-SF8001 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the M12B-05PFFP-SF8001 connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the M12B-05PFFP-SF8001 connector is designed for harsh environments and is suitable for outdoor use. It has an IP67 rating, which means it can withstand dust and water ingress.
  • The M12B-05PFFP-SF8001 connector has an operating temperature range of -40°C to 85°C (-40°F to 185°F).
  • Yes, the M12B-05PFFP-SF8001 connector is designed to withstand high-vibration applications. It has a ruggedized design and is suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the M12B-05PFFP-SF8001 connector is compatible with other M12 connectors that meet the IEC 61076-2-101 standard. However, it's always recommended to check the compatibility of the connector with the specific application and mating connector.
