M20-7811245R - Harwin

Description: M20: 12+12 Pos Receptacle DIL Straight SMT Connector 3.75mm high (T+R)

Download M20-7811245R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-7811245R - Harwin - PCB symbol
click to zoom
PCB Footprints

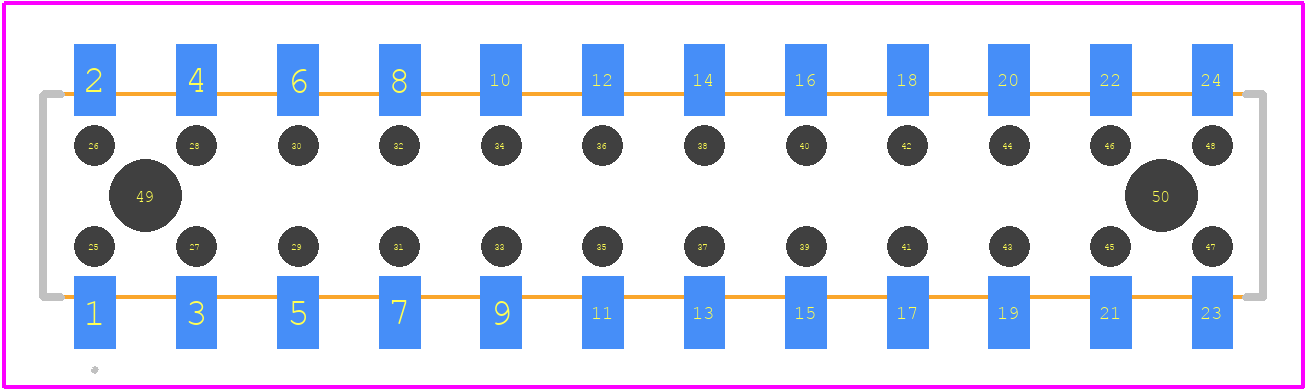

M20-7811245R - Harwin PCB footprint - Other - Other - M20-7811245R-2
click to zoom
3D Models
M20-7811245R - Harwin - 3D model - Other - M20-7811245R-2
click to zoom

M20-7811245R Details

  • Manufacturer Part Number:

    M20-7811245R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

M20-7811245R Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the M20-7811245R is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the M20-7811245R has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The operating temperature range of the M20-7811245R is -40°C to +125°C, making it suitable for a wide range of applications.
  • Yes, the M20-7811245R is designed for use with cable assemblies, and Harwin offers a range of cable assembly options for this connector.
