M20-9950845 - Harwin

Description: M20: 8+8 Pos Plug DIL Right-Angle 3mm THT Connector 6.1mm pin Gold

Download M20-9950845 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-9950845 - Harwin - PCB symbol
click to zoom
PCB Footprints

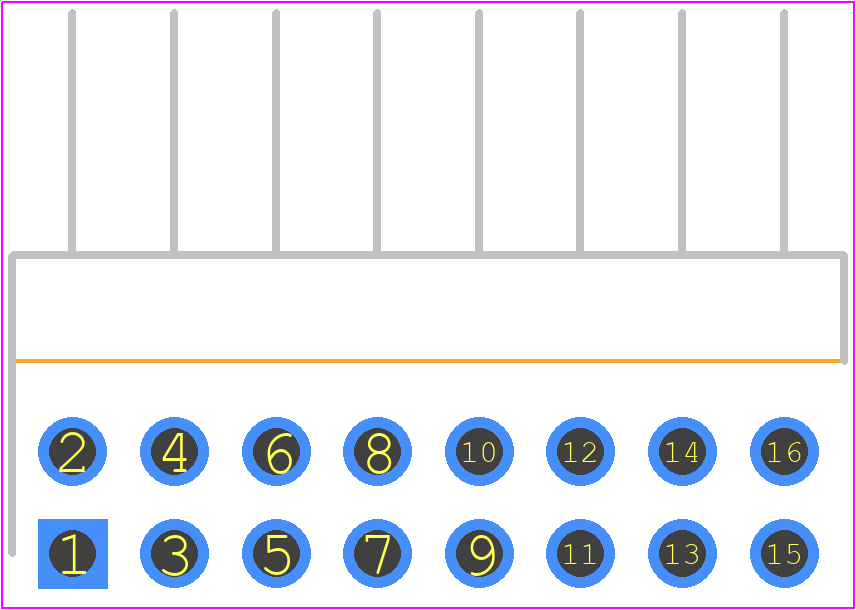

M20-9950845 - Harwin PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - M20-9950845
click to zoom
3D Models
M20-9950845 - Harwin - 3D model - Header, Unshrouded - Right Angle PTH Pin - M20-9950845
click to zoom

M20-9950845 Details

  • Manufacturer Part Number:

    M20-9950845

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

M20-9950845 Frequently Asked Questions (FAQs)

  • The recommended torque for the M20-9950845 connector is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the M20-9950845 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the M20-9950845 connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C and humidity resistance of 95% RH at 40°C.
  • The M20-9950845 connector has a mating cycle life of 500 cycles, as specified in the Harwin datasheet.
  • Yes, the M20-9950845 connector is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M20-9950845 Overview

Use the download button to access the M20-9950845 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M20-9, or try a keyword search, such as Headers and Edge Type Connectors
