Part Image

M20-9952545 - Harwin

Description: M20: 25+25 Pos Plug DIL Right-Angle 3mm THT Connector 6.1mm pin Gold

Download M20-9952545 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

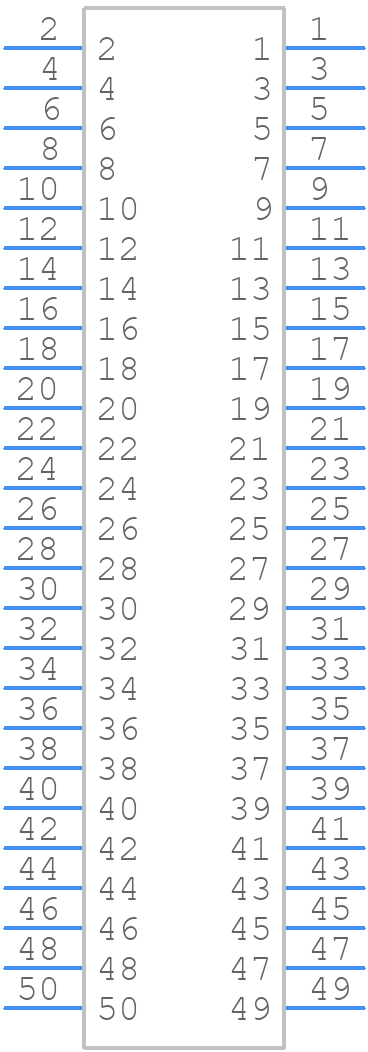

Symbol
M20-9952545 - Harwin - PCB symbol
click to zoom

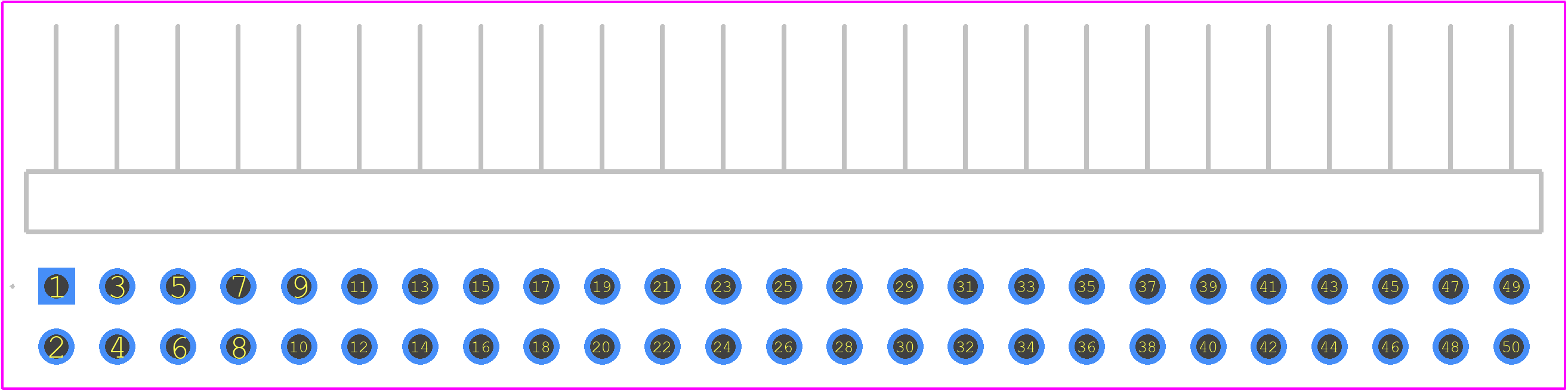

PCB Footprints
M20-9952545 - Harwin PCB footprint - Other - Other - M20-9952545-2
click to zoom
3D Models
M20-9952545 - Harwin - 3D model - Other - M20-9952545-2
click to zoom

M20-9952545 Details

  • Manufacturer Part Number:

    M20-9952545

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

M20-9952545 Frequently Asked Questions (FAQs)

  • The recommended torque for the M20-9952545 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environment.
  • Yes, the M20-9952545 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • Yes, the M20-9952545 connector is designed to operate in harsh environments, with a temperature range of -55°C to +125°C and humidity resistance up to 95% RH.
  • The M20-9952545 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • Yes, the M20-9952545 connector is part of the Harwin M20 series, which is designed to be compatible with other connectors in the same series, allowing for flexibility in design and assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M20-9952545 Overview

Use the download button to access the M20-9952545 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M20-9, or try a keyword search, such as Headers and Edge Type Connectors
