M20-9961046 - Harwin

Description: M20: 10 Pos Plug SIL Right-Angle 3mm THT Connector 6.1mm pin Tin

Download M20-9961046 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-9961046 - Harwin - PCB symbol
click to zoom
PCB Footprints

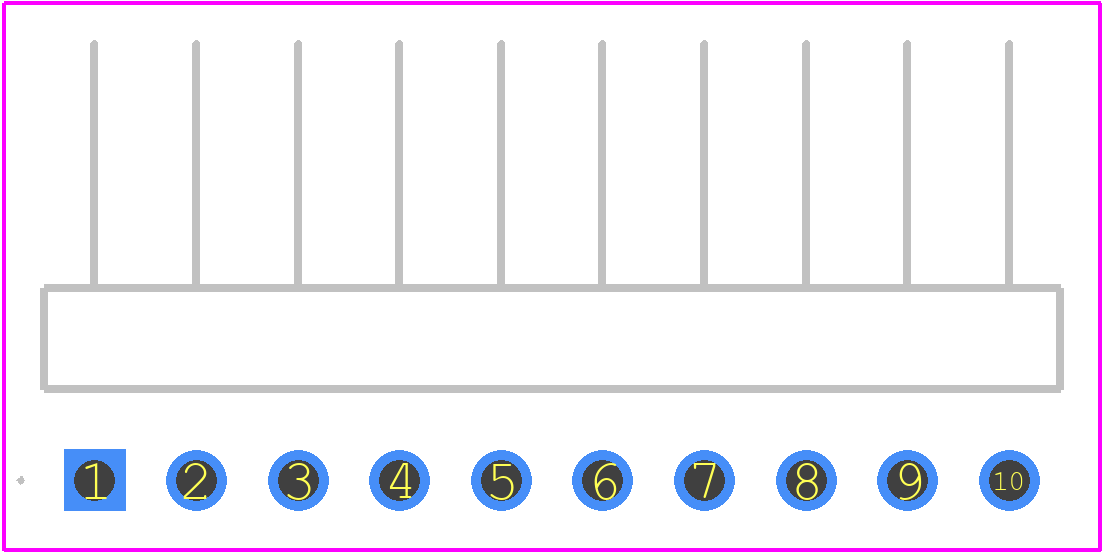

M20-9961046 - Harwin PCB footprint - Other - Other - M20-9961046-1
click to zoom
3D Models
M20-9961046 - Harwin - 3D model - Other - M20-9961046-1
click to zoom

M20-9961046 Details

  • Manufacturer Part Number:

    M20-9961046

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

M20-9961046 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads of M20-9961046 is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the M20-9961046 is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • The M20-9961046 is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and application notes for specific environmental requirements.
  • The M20-9961046 has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • The M20-9961046 is designed to be compatible with other manufacturers' mating connectors that meet the same industry standards (e.g., MIL-DTL-83513). However, it's recommended to verify compatibility before use.
