M20-9961246 - Harwin

Description: M20: 12 Pos Plug SIL Right-Angle 3mm THT Connector 6.1mm pin Tin

Download M20-9961246 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-9961246 - Harwin - PCB symbol
click to zoom
PCB Footprints

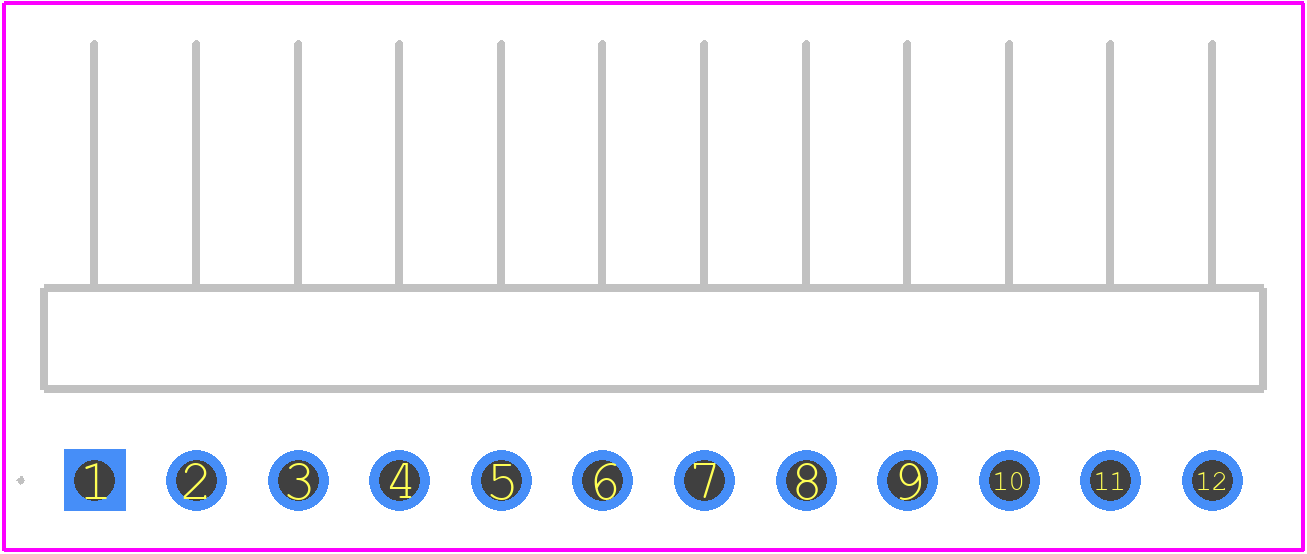

M20-9961246 - Harwin PCB footprint - Other - Other - M20-9961246-1
click to zoom
3D Models
M20-9961246 - Harwin - 3D model - Other - M20-9961246-1
click to zoom

M20-9961246 Details

  • Manufacturer Part Number:

    M20-9961246

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

M20-9961246 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the M20-9961246 is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat 2.
  • Yes, the M20-9961246 has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The operating temperature range of the M20-9961246 is -40°C to +125°C, as specified in the datasheet.
  • No, the M20-9961246 is designed for use with PCBs up to 1.6 mm thick. Using a thicker PCB may compromise the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M20-9961246 Overview

Use the download button to access the M20-9961246 schematic symbol, PCB footprint, and 3D model.
