Please enter a minimum 3 letters or numbers
Technical Content
Part Image

M20-9962046 - Harwin

Description: M20: 20 Pos Plug SIL Right-Angle 3mm THT Connector 6.1mm pin Tin

Download M20-9962046 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-9962046 - Harwin - PCB symbol
click to zoom
PCB Footprints

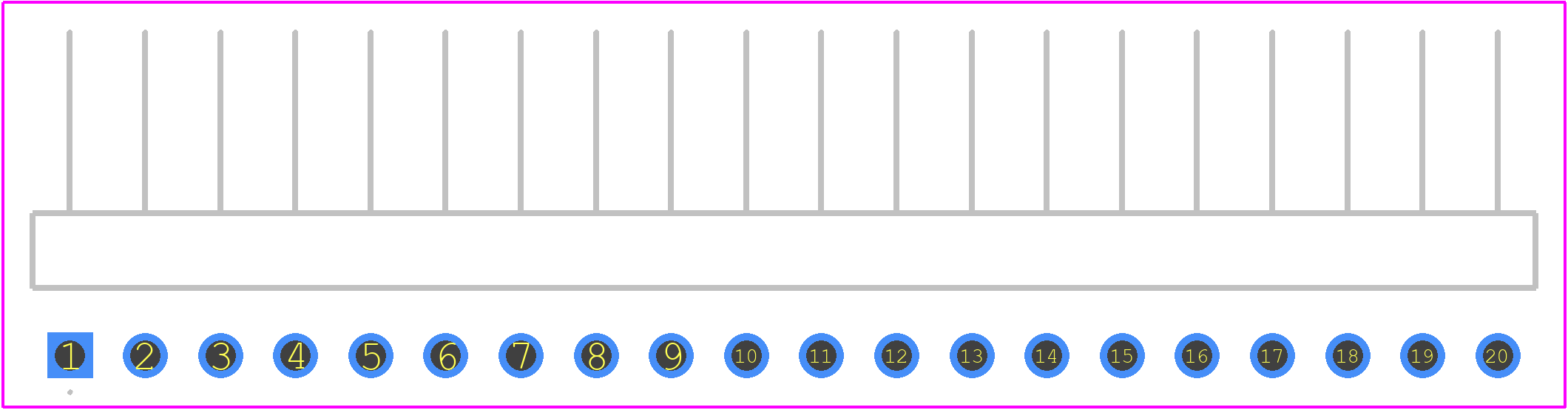

M20-9962046 - Harwin PCB footprint - Other - Other - M20-9962046-2
click to zoom
3D Models
M20-9962046 - Harwin - 3D model - Other - M20-9962046-2
click to zoom

M20-9962046 Details

  • Manufacturer Part Number:

    M20-9962046

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

M20-9962046 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions. It's essential to consult the Harwin application notes for specific guidance.
  • Yes, the M20-9962046 is designed to withstand vibrations up to 10g, making it suitable for applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and screw torque to maintain the connector's integrity.
  • The M20-9962046 has an operating temperature range of -40°C to +125°C, making it suitable for most industrial and commercial applications. However, it's essential to consider the temperature rating of the mating components and the overall system design.
  • The M20-9962046 has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and mating to maintain the IP rating.
  • The M20-9962046 is designed to operate in harsh environments, but it's essential to consider the specific environmental conditions and potential chemical exposure. Harwin recommends consulting their application notes and performing environmental testing to ensure the connector's suitability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M20-9962046 Overview

Use the download button to access the M20-9962046 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M20-9, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to M20-9962046

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

M20-9962046 Alternates

Showing results

Image Part Number Model
Part Image M20-9752046 Harwin

Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
Part Image 890-80-020-20-001101 PRECI-DIP SSA

Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle
Part Image 890-70-020-20-001101 PRECI-DIP SSA

Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle
Part Image M20-9752022 Harwin

Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle
Part Image M20-9962005 Harwin

Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle
For a full list of alternate parts for M20-9962046, check out Findchips.com
