The recommended torque for the M20-9981045 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the M20-9981045 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
Yes, the M20-9981045 connector is designed to operate in harsh environments, including high temperatures up to 150°C and high humidity. However, it's essential to consult the datasheet and application notes for specific guidance.
The M20-9981045 connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent mating and unmating are required.
Yes, the M20-9981045 connector is part of the Harwin M20 series, which offers a range of compatible connectors and accessories. However, it's essential to consult the datasheet and application notes to ensure compatibility with specific connectors and applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M20-9981045 Overview

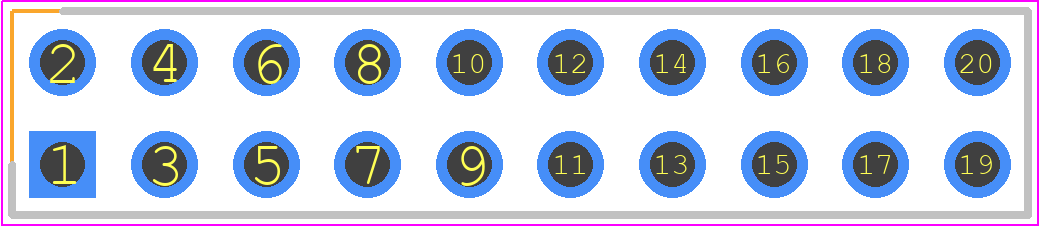

Use the download button to access the M20-9981045 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M20-9,
or try a keyword search, such as Headers and Edge Type Connectors
