M20-9982045 - Harwin

Description: M20: 20+20 Pos Plug DIL Straight 3mm THT Connector 6.1mm pin Gold

Download M20-9982045 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-9982045 - Harwin - PCB symbol
click to zoom
PCB Footprints

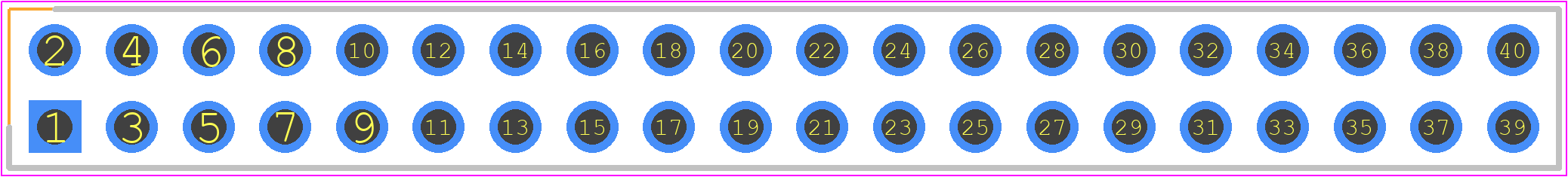

M20-9982045 - Harwin PCB footprint - Header, Vertical - Header, Vertical - M20-9982045
click to zoom
3D Models
M20-9982045 - Harwin - 3D model - Header, Vertical - M20-9982045
click to zoom

M20-9982045 Details

  • Manufacturer Part Number:

    M20-9982045

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

M20-9982045 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the M20-9982045 is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, and 3 axes.
  • Yes, the M20-9982045 has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The operating temperature range of the M20-9982045 is -40°C to +125°C, making it suitable for a wide range of applications.
  • The M20-9982045 is a PCB-mount connector, and it can be directly mounted to a PCB. However, you will need a mating connector, such as the M20-9982046, to connect to a cable or another PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M20-9982045 Overview

Use the download button to access the M20-9982045 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M20-9, or try a keyword search, such as Headers and Edge Type Connectors
