M20-9982345 - Harwin

Description: M20: 23+23 Pos Plug DIL Straight 3mm THT Connector 6.1mm pin Gold

Download M20-9982345 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

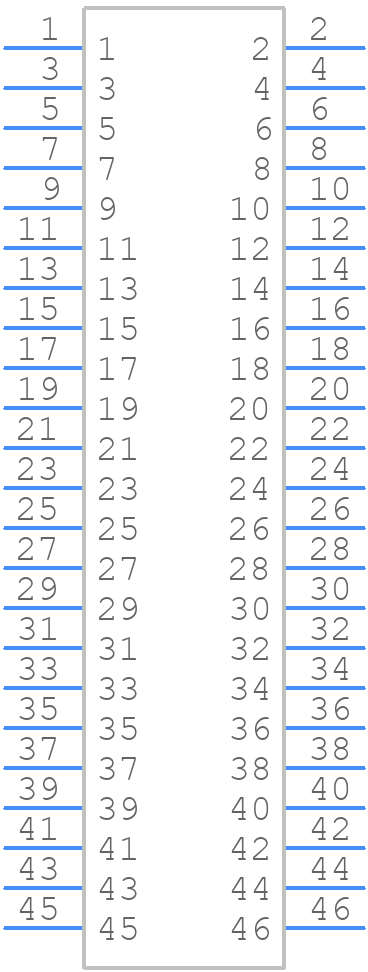

Symbol
M20-9982345 - Harwin - PCB symbol
click to zoom

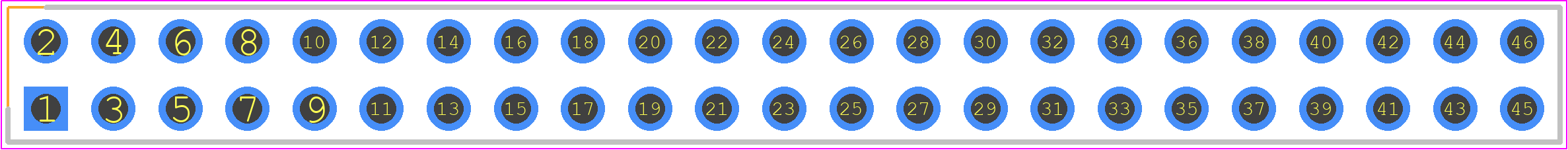

PCB Footprints
M20-9982345 - Harwin PCB footprint - Header, Vertical - Header, Vertical - M20-9982345
click to zoom
3D Models
M20-9982345 - Harwin - 3D model - Header, Vertical - M20-9982345
click to zoom

M20-9982345 Details

  • Manufacturer Part Number:

    M20-9982345

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    46

  • UL Flammability Code:

    94V-0

M20-9982345 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on the M20-9982345 is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the M20-9982345 is designed to withstand high-vibration environments. Harwin recommends following their guidelines for vibration testing and ensuring proper screw locking to prevent connector detachment.
  • The M20-9982345 is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95%. However, it's essential to follow Harwin's guidelines for environmental testing and ensure proper sealing to prevent moisture ingress.
  • The M20-9982345 has a mating cycle life of 500 cycles, as specified in the Harwin datasheet. This means the connector can withstand 500 connect and disconnect cycles without compromising its performance.
  • Harwin recommends using their mating connectors to ensure compatibility and optimal performance. However, the M20-9982345 is designed to meet industry standards, and compatibility with other manufacturers' mating connectors may be possible. It's essential to verify compatibility before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M20-9982345 Overview

Use the download button to access the M20-9982345 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M20-9, or try a keyword search, such as Headers and Edge Type Connectors
