M20-9983645 - Harwin

Description: M20: 36+36 Pos Plug DIL Straight 3mm THT Connector 6.1mm pin Gold

Download M20-9983645 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-9983645 - Harwin - PCB symbol
click to zoom
PCB Footprints

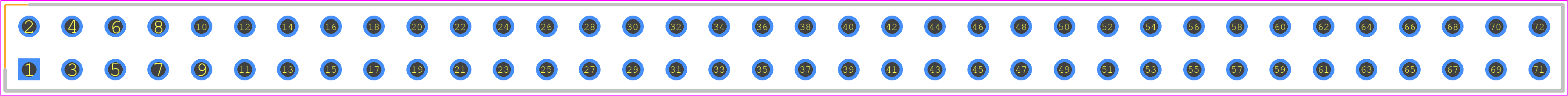

M20-9983645 - Harwin PCB footprint - Header, Vertical - Header, Vertical - LinkECU
click to zoom
3D Models
M20-9983645 - Harwin - 3D model - Header, Vertical - LinkECU
click to zoom

M20-9983645 Details

  • Manufacturer Part Number:

    M20-9983645

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    72

  • UL Flammability Code:

    94V-0

M20-9983645 Frequently Asked Questions (FAQs)

  • The recommended torque for the M20-9983645 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the M20-9983645 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • Yes, the M20-9983645 connector is designed to operate in harsh environments, including high temperatures up to 150°C and high humidity. However, it's essential to follow the recommended derating guidelines for extreme conditions.
  • The M20-9983645 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the M20-9983645 connector is part of the Harwin M20 series, which offers a range of compatible connectors and accessories, allowing for flexibility in design and assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M20-9983645 Overview

Use the download button to access the M20-9983645 schematic symbol, PCB footprint, and 3D model.
