M20-9983646 - Harwin

Description: M20: 36+36 Pos Plug DIL Straight 3mm THT Connector 6.1mm pin Tin

Download M20-9983646 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-9983646 - Harwin - PCB symbol
click to zoom
PCB Footprints

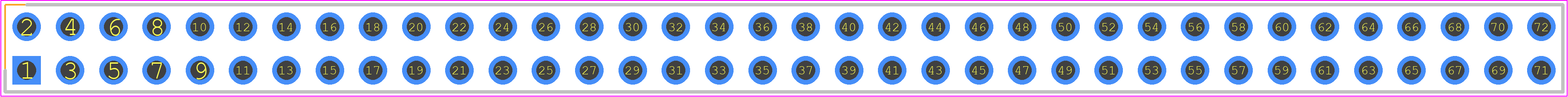

M20-9983646 - Harwin PCB footprint - Header, Vertical - Header, Vertical - M20-9983646
click to zoom
3D Models
M20-9983646 - Harwin - 3D model - Header, Vertical - M20-9983646
click to zoom

M20-9983646 Details

  • Manufacturer Part Number:

    M20-9983646

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    72

  • UL Flammability Code:

    94V-0

M20-9983646 Frequently Asked Questions (FAQs)

  • The recommended torque for the M20-9983646 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the M20-9983646 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g (IEC 60068-2-6).
  • Yes, the M20-9983646 connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The M20-9983646 connector has a mating cycle life of up to 500 cycles, depending on the specific application and usage.
  • Yes, the M20-9983646 connector is designed to be compatible with other Harwin connectors, including the M20-9983645 and M20-9983647, allowing for flexibility in design and application.
