M2012S2A2G13 footprint, schematic symbol and 3D model by NKK Switches

Symbol

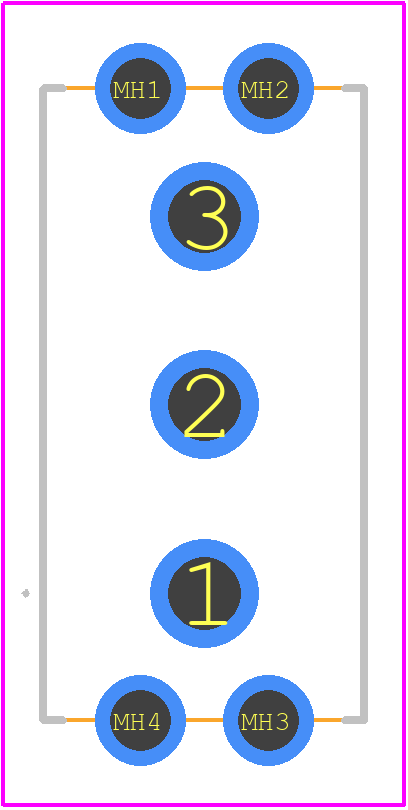

PCB Footprints

3D Models

M2012S2A2G13 Details

The recommended operating temperature range for the M2012S2A2G13 switch is -20°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
Yes, the M2012S2A2G13 switch is designed for high-reliability applications, with a lifespan of up to 10,000 cycles and a low contact resistance of 10mΩ max.
Yes, the M2012S2A2G13 switch is designed to operate in harsh environments, with a rating of IP67 for dust and water resistance, and can withstand vibration and shock up to 10G and 50G, respectively.
The recommended cleaning method for the M2012S2A2G13 switch is to use a soft brush and a mild detergent, followed by a dry air blow to remove any moisture. Avoid using harsh chemicals or abrasive materials that can damage the switch.
Yes, the M2012S2A2G13 switch is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
