M2012S2A2W40 footprint, schematic symbol and 3D model by NKK Switches

Symbol

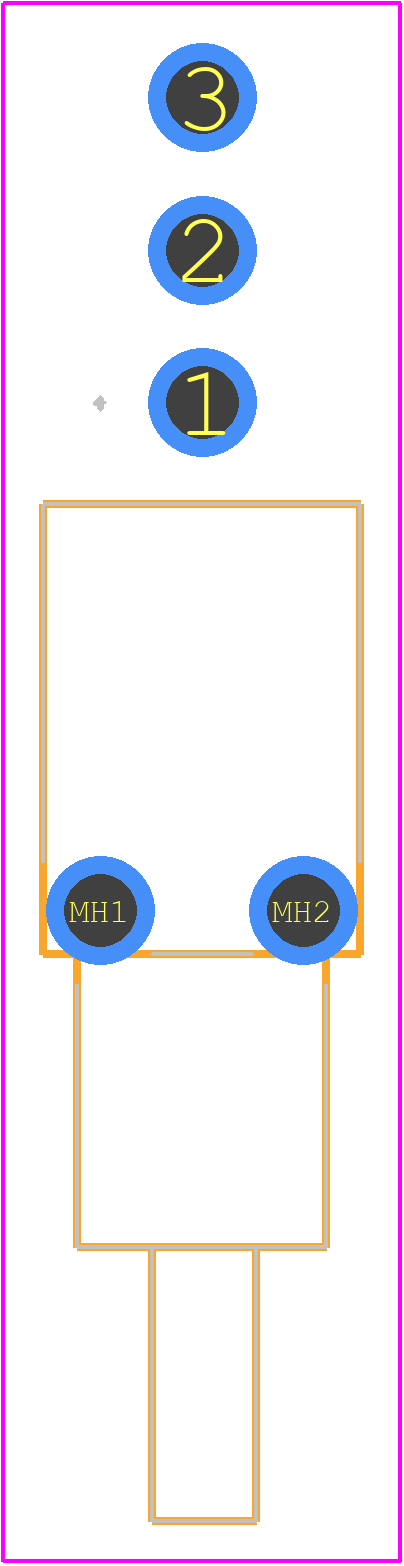

PCB Footprints

3D Models

M2012S2A2W40 Details

The recommended operating temperature range for the M2012S2A2W40 is -20°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
Yes, the M2012S2A2W40 is designed for high-reliability applications, with a lifespan of up to 10,000,000 cycles and a low contact resistance of 10mΩ max.
Yes, the M2012S2A2W40 is designed to operate in harsh environments, with a rating of IP67 for dust and water resistance, and can withstand vibration and shock up to 10G and 100G, respectively.
The recommended torque for the M2012S2A2W40's actuator is 0.5 N·m to 1.5 N·m, although it can withstand up to 2.5 N·m without damage.
Yes, the M2012S2A2W40 is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.

Expert Contribution

System Verified

Community Approved

Use the download button to access the M2012S2A2W40 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like M2012, or try a keyword search, such as Toggle Switches
