M2012SA2W30 footprint, schematic symbol and 3D model by NKK Switches

Symbol

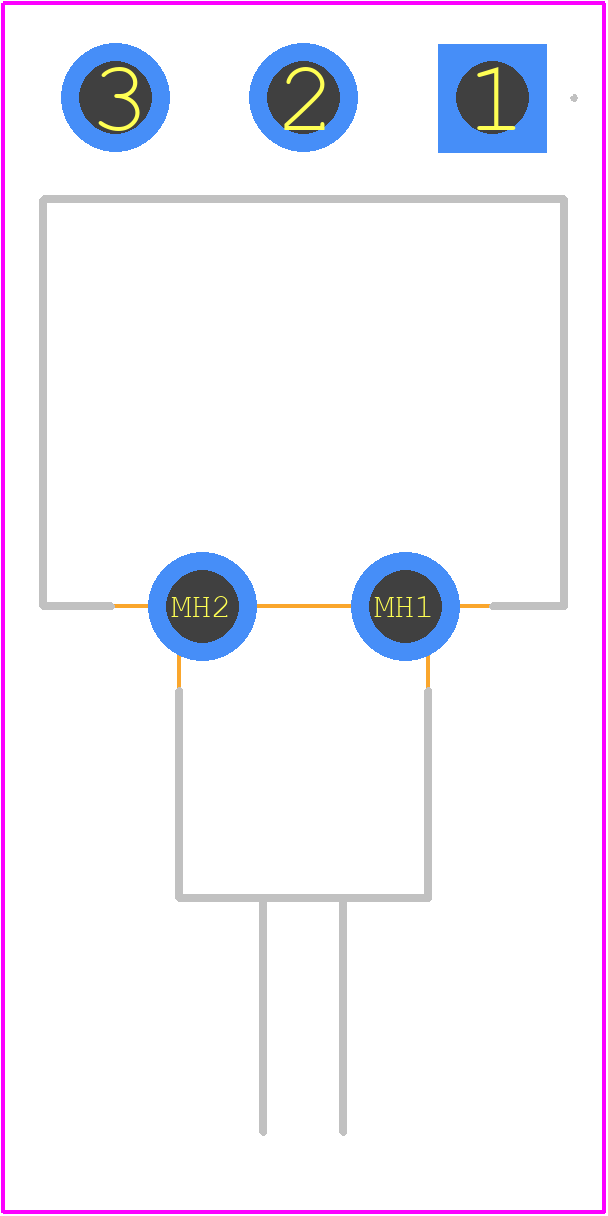

PCB Footprints

M2012SA2W30 Details

The recommended operating temperature range for the M2012SA2W30 switch is -20°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
Yes, the M2012SA2W30 switch is designed to withstand vibrations up to 10G (10-2000Hz) and can operate reliably in high-vibration environments.
The M2012SA2W30 switch has an expected lifespan of 100,000 to 200,000 cycles, depending on the operating conditions and usage.
Yes, the M2012SA2W30 switch is designed to be washable and waterproof, with an IP67 rating, making it suitable for use in harsh environments.
Yes, the M2012SA2W30 switch has a metal body that provides some level of EMI shielding, although additional shielding measures may be necessary depending on the specific application requirements.

Expert Contribution

System Verified

Community Approved

Use the download button to access the M2012SA2W30 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M2012, or try a keyword search, such as Toggle Switches
