Part Image

M2012SS1G40 - NKK Switches

Description: Toggle Switches SPDT ON-NONE-ON

Download M2012SS1G40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

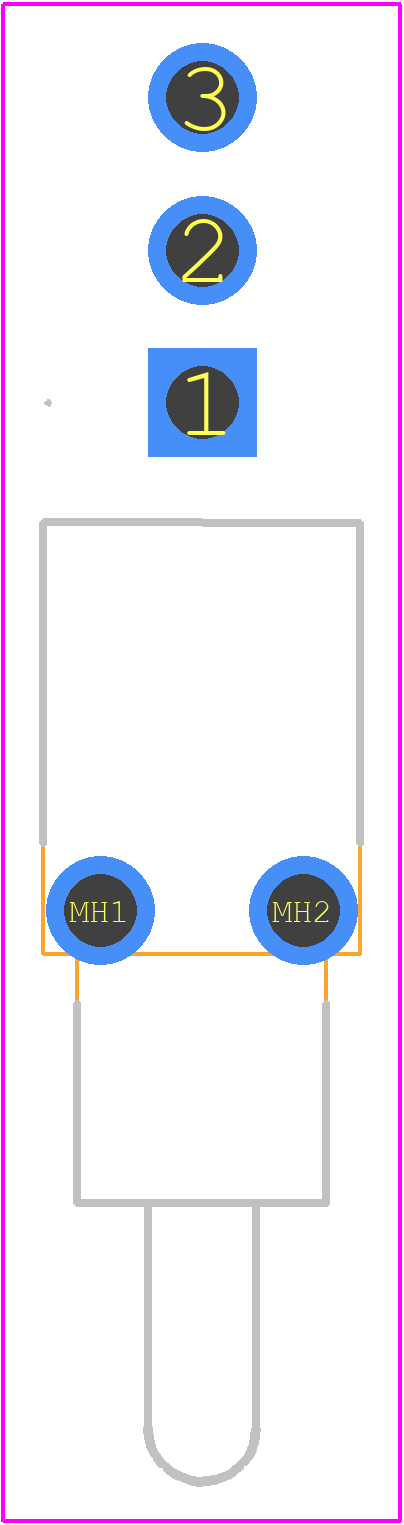

M2012SS1G40 - NKK Switches PCB footprint - Other - Other - M2012SS1G40-1
click to zoom

M2012SS1G40 Details

  • Manufacturer Part Number:

    M2012SS1G40

  • Brand Name:

    NKK Switches

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    NKK Switches

  • YTEOL:

    0

  • Switch Type:

    TOGGLE SWITCH

M2012SS1G40 Frequently Asked Questions (FAQs)

  • The operating force of the M2012SS1G40 switch is 1.5 N (150 gf).
  • The electrical life of the M2012SS1G40 switch is 100,000 cycles.
  • Yes, the M2012SS1G40 switch is suitable for high-temperature applications, with an operating temperature range of -20°C to 85°C (-4°F to 185°F).
  • The insulation resistance of the M2012SS1G40 switch is 100 MΩ (min) at 500 VDC.
  • Yes, the M2012SS1G40 switch is RoHS compliant, meeting the requirements of EU Directive 2011/65/EU.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M2012SS1G40 Overview

Use the download button to access the M2012SS1G40 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like M2012, or try a keyword search, such as Toggle Switches
