The recommended torque for mounting the M2012SS1W30 switch is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in).
Yes, the M2012SS1W30 switch is designed to withstand vibrations up to 10 G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
The operating temperature range for the M2012SS1W30 switch is -20°C to 85°C (-4°F to 185°F).
Yes, the M2012SS1W30 switch is designed to be resistant to water and dust, with an IP67 rating, making it suitable for use in environments where washdown or cleaning procedures are necessary.
The expected lifespan of the M2012SS1W30 switch is 100,000 cycles minimum, depending on operating conditions and usage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M2012SS1W30 Overview

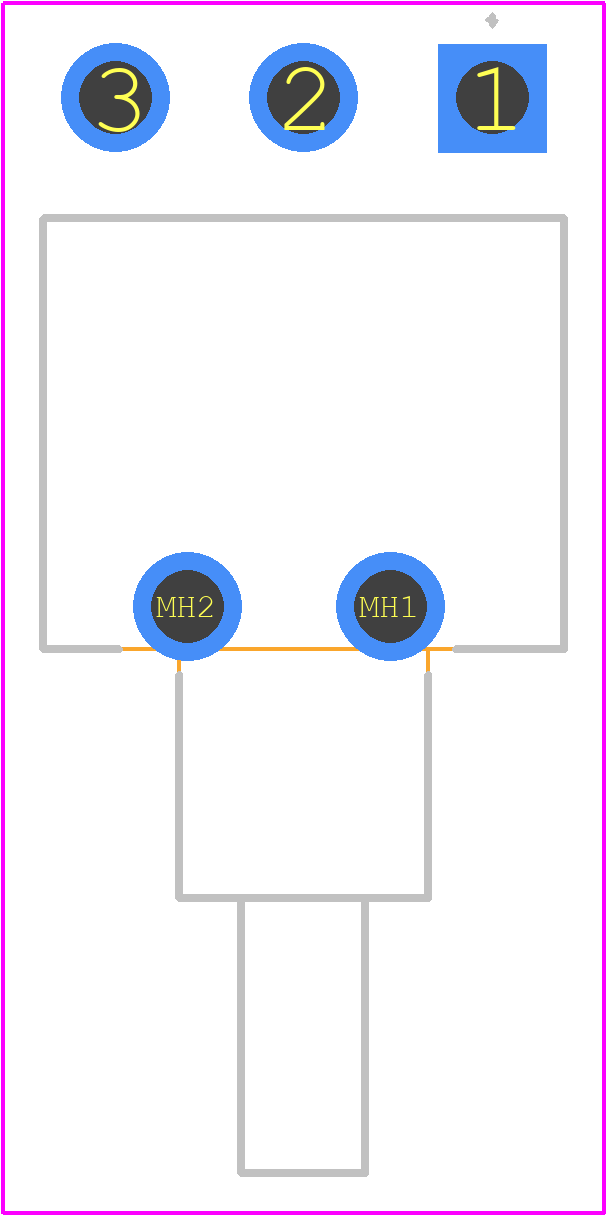

Use the download button to access the M2012SS1W30 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like M2012,
or try a keyword search, such as Toggle Switches
