M2012SS1W40 footprint, schematic symbol and 3D model by NKK Switches

Symbol

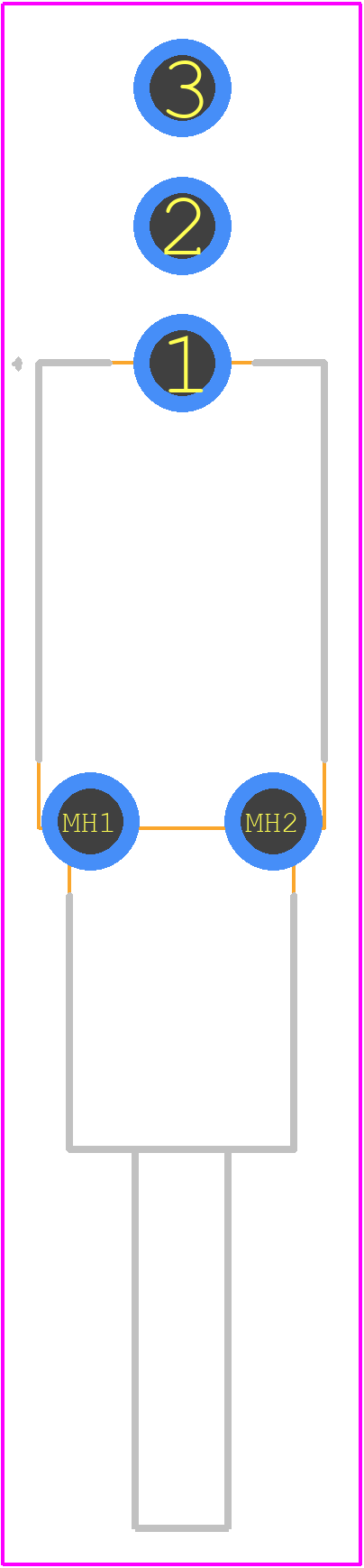

PCB Footprints

3D Models

M2012SS1W40 Details

The recommended torque for mounting the M2012SS1W40 switch is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in).
Yes, the M2012SS1W40 switch is designed to withstand vibrations up to 10 G (10 Hz to 2000 Hz) and can be used in high-vibration environments.
The operating temperature range for the M2012SS1W40 switch is -20°C to 85°C (-4°F to 185°F).
Yes, the M2012SS1W40 switch is designed to be resistant to water and dust, with an IP67 rating, making it suitable for use in environments where washdown or cleaning procedures are necessary.
The expected lifespan of the M2012SS1W40 switch is 100,000 cycles minimum, depending on operating conditions and usage.

Community Provided

System Verified

Community Approved

Use the download button to access the M2012SS1W40 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like M2012, or try a keyword search, such as Toggle Switches
