M2018SS1G40 footprint, schematic symbol and 3D model by NKK Switches

Symbol

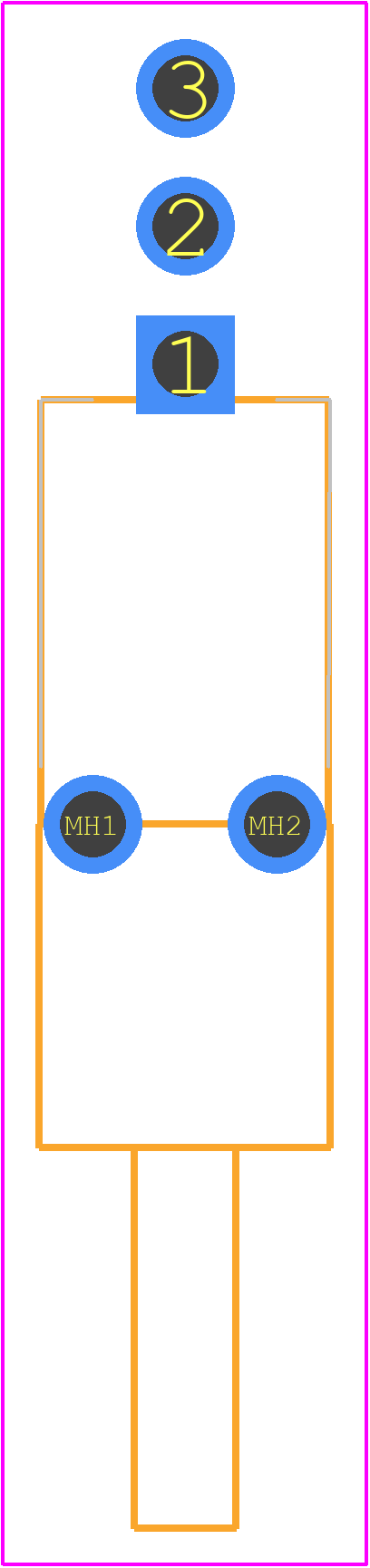

PCB Footprints

3D Models

M2018SS1G40 Details

The recommended operating temperature range for the M2018SS1G40 is -20°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
Yes, the M2018SS1G40 is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
The M2018SS1G40 has an expected lifespan of 100,000 cycles, although this can vary depending on the application and operating conditions.
The M2018SS1G40 is not designed to be washed or cleaned with liquids, as it is not sealed against ingress. However, it can be cleaned with a soft brush or dry cloth.
The M2018SS1G40 is not designed for use in hazardous locations, such as explosive atmospheres. It does not have any certifications for use in such environments.

Expert Contribution

System Verified

Community Approved

Use the download button to access the M2018SS1G40 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like M2018, or try a keyword search, such as Toggle Switches
