The recommended operating temperature range for the M2022LL2A30 is -20°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
Yes, the M2022LL2A30 is designed for high-reliability applications, with a minimum of 100,000 electrical life cycles and a contact resistance of less than 10mΩ.
Yes, the M2022LL2A30 is designed to operate in harsh environments, with a rating of IP67 for dust and water resistance, and can withstand vibration and shock up to 10G and 100G, respectively.
The recommended torque for the M2022LL2A30's actuator is 0.5 N·m to 1.5 N·m, although it can withstand up to 2.5 N·m without damage.
Yes, the M2022LL2A30 is compliant with both RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M2022LL2A30 Overview

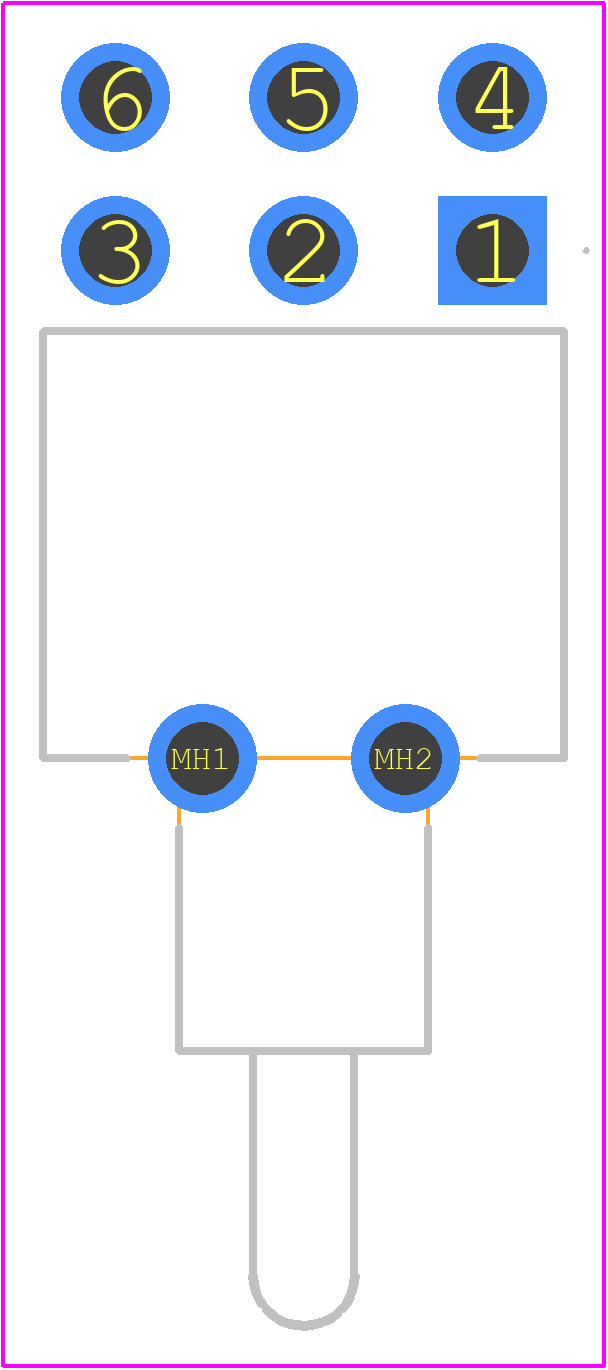

Use the download button to access the M2022LL2A30 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like M2022,
or try a keyword search, such as Toggle Switches
