M2022SD8W01 - NKK Switches

Description: Toggle Switch IP67 DPDT On-On, 3 A @ 30 V dc, 6 A @ 125 V ac, PCB

Download M2022SD8W01 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this M2022SD8W01 model

Email notifications will be applied after download.

Send part feedback

Symbol

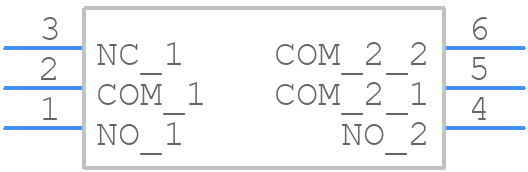

M2022SD8W01 - NKK Switches - PCB symbol

PCB Footprints

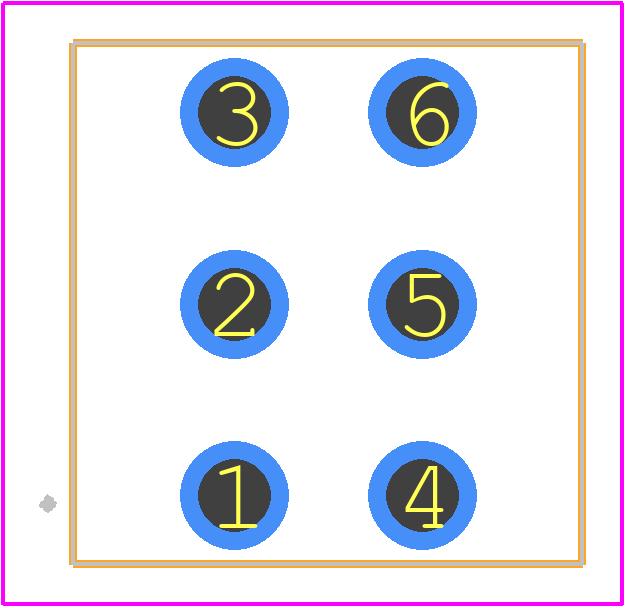

M2022SD8W01 - NKK Switches PCB footprint - Other - Other - M2022SD8W01

3D Models

M2022SD8W01 - NKK Switches - 3D model - Other - M2022SD8W01

Datasheet Download Datasheet
Stock & Prices Price & Stock for M2022SD8W01
Part Number M2022SD8W01
Manufacturer NKK Switches
Pin Count 6
Part Category Switch
Package Category Other
Footprint Name Other - M2022SD8W01
Released Date Jul 9, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
