The recommended torque for mounting the M2023SS2G13 switch is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in). It's essential to follow this torque specification to ensure proper mounting and prevent damage to the switch or the PCB.
Yes, the M2023SS2G13 switch is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2000 Hz, making it suitable for use in high-vibration environments. However, it's essential to ensure proper mounting and secure the switch to the PCB to prevent damage or malfunction.
The M2023SS2G13 switch has a rating of IP40, which means it provides protection against solid objects larger than 1 mm and is not protected against water. While it can operate in humid environments, it's not recommended for use in wet or submerged applications. If you need a switch for wet environments, consider using a switch with a higher IP rating, such as IP67 or higher.
The expected lifespan of the M2023SS2G13 switch is 10,000 to 50,000 cycles, depending on the operating conditions and usage. Proper usage, mounting, and maintenance can help extend the lifespan of the switch.
Yes, the M2023SS2G13 switch is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in applications that require these certifications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M2023SS2G13 Overview

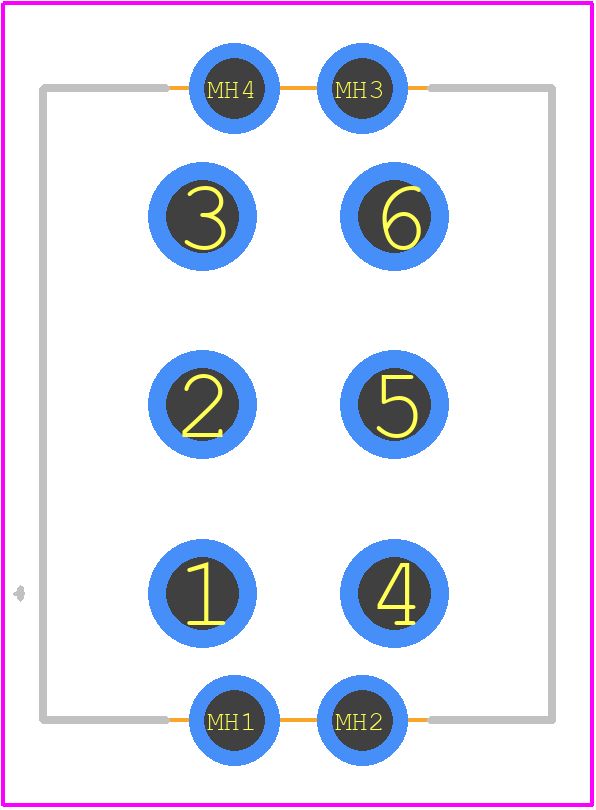

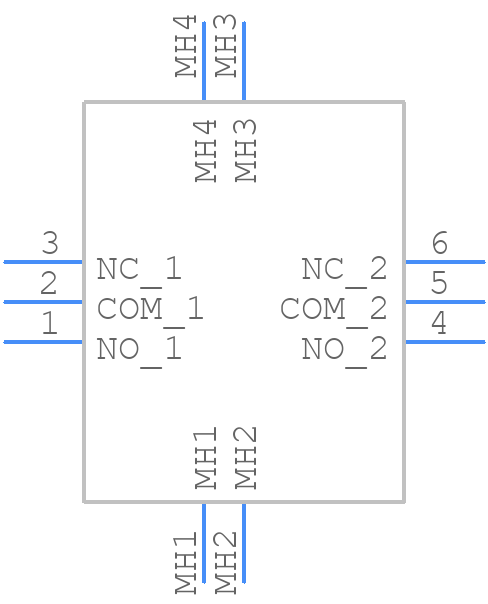

Use the download button to access the M2023SS2G13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M2023,
or try a keyword search, such as Toggle Switches
