M2024SS1W03 - NKK Switches

M2024SS1W03 Details

• Manufacturer Part Number:

  M2024SS1W03

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  NKK Switches

• YTEOL:

  0

• Actuator Angle:

  25 deg

• Actuator Finish:

  CHROME

• Actuator Length:

  0.413 inch

• Actuator Material:

  BRASS

• Actuator Type:

  TOGGLE BAT

• Body Breadth:

  12.7 mm

• Body Height:

  35.1536 mm

• Body Length or Diameter:

  13.0048 mm

• Bushing Diameter:

  0.25 inch

• Bushing Length:

  0.35 inch

• Bushing Type:

  1/4-40

• Center Contact Material:

  SILVER

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  3A@250VAC

• Contact Current(AC)-Max:

  6 A

• Contact Function:

  ON-ON-ON

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  25000 Cycle(s)

• End Contact Material:

  SILVER

• End Contact Plating:

  SILVER

• Housing Material:

  STAINLESS STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -15 °C

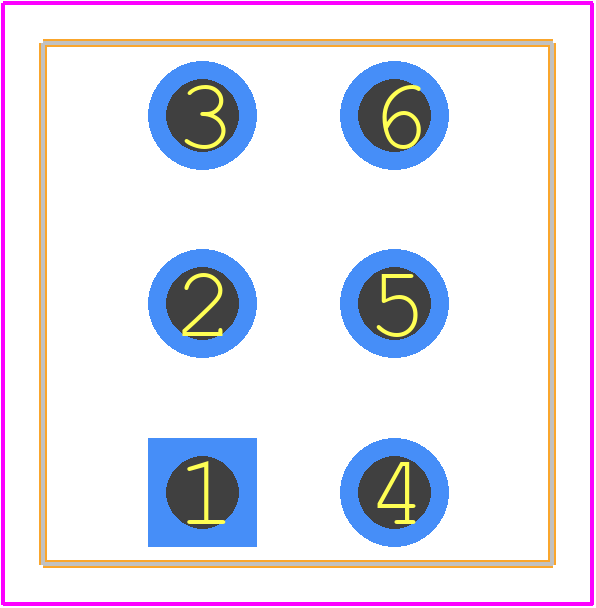

• PCB Hole Count:

  6

• Sealing:

  EPOXY

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT/SP3T

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  GOLD OVER NICKEL/SILVER

• Terminal Length:

  0.25 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
