M2024SS1W40 - NKK Switches

Description: Switch Toggle ON ON ON SP3T Small Bat Lever PC Pins 6A 250VAC 30VDC PC Mount with Bracket and Threads

Download M2024SS1W40 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this M2024SS1W40 model

Email notifications will be applied after download.

Send part feedback

Symbol

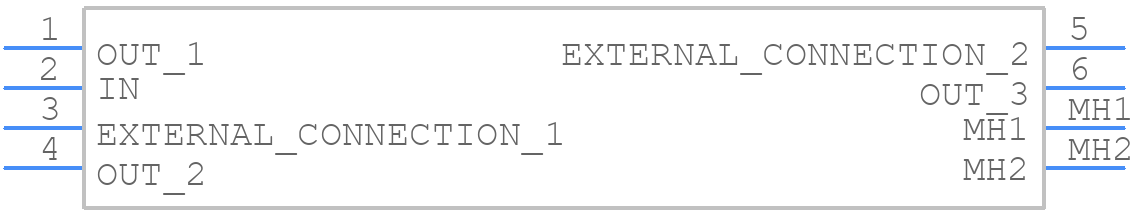

M2024SS1W40 - NKK Switches - PCB symbol

PCB Footprints

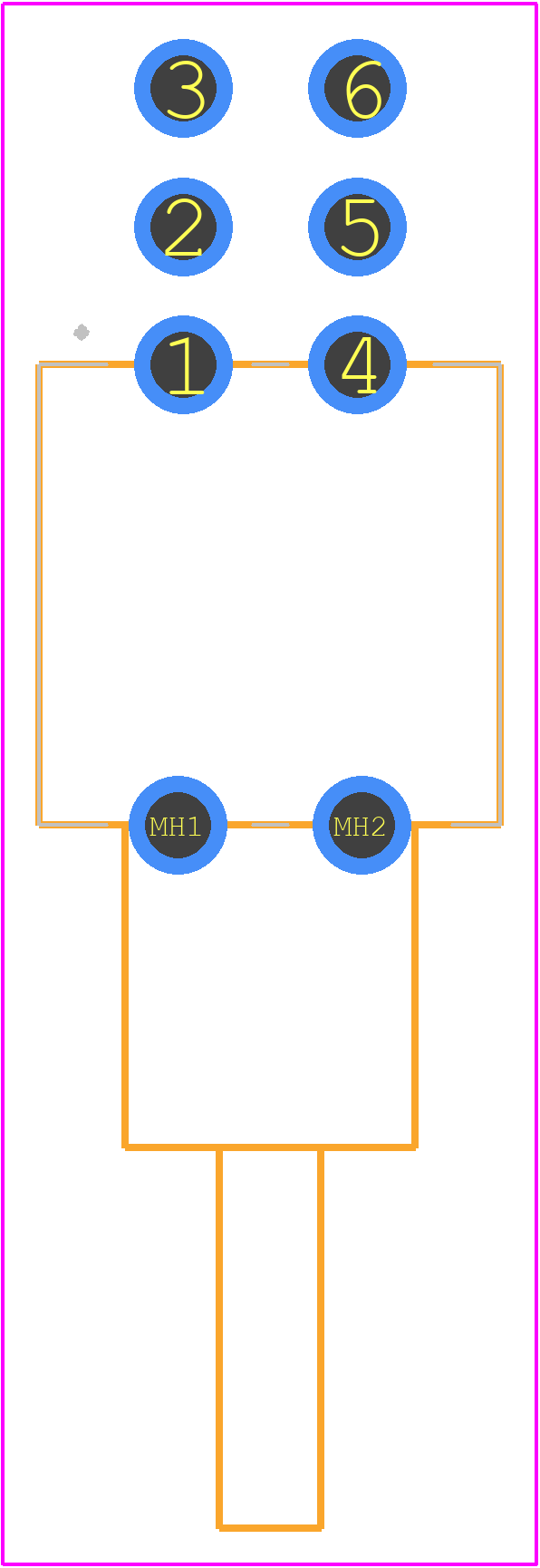

M2024SS1W40 - NKK Switches PCB footprint - Other - Other - M2024SS1W40-2

3D Models

M2024SS1W40 - NKK Switches - 3D model - Other - M2024SS1W40-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for M2024SS1W40
Part Number M2024SS1W40
Manufacturer NKK Switches
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - M2024SS1W40-2
Released Date Sep 30, 2020
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

M2024SS1W40 Details

Manufacturer Part Number:
M2024SS1W40
Brand Name:
NKK Switches
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
NKK Switches
YTEOL:
0
Switch Type:
TOGGLE SWITCH
