M2032SS2W30 footprint, schematic symbol and 3D model by NKK Switches

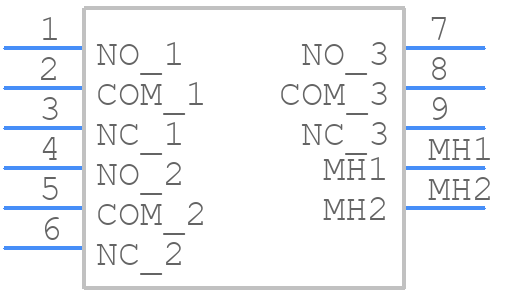

Symbol

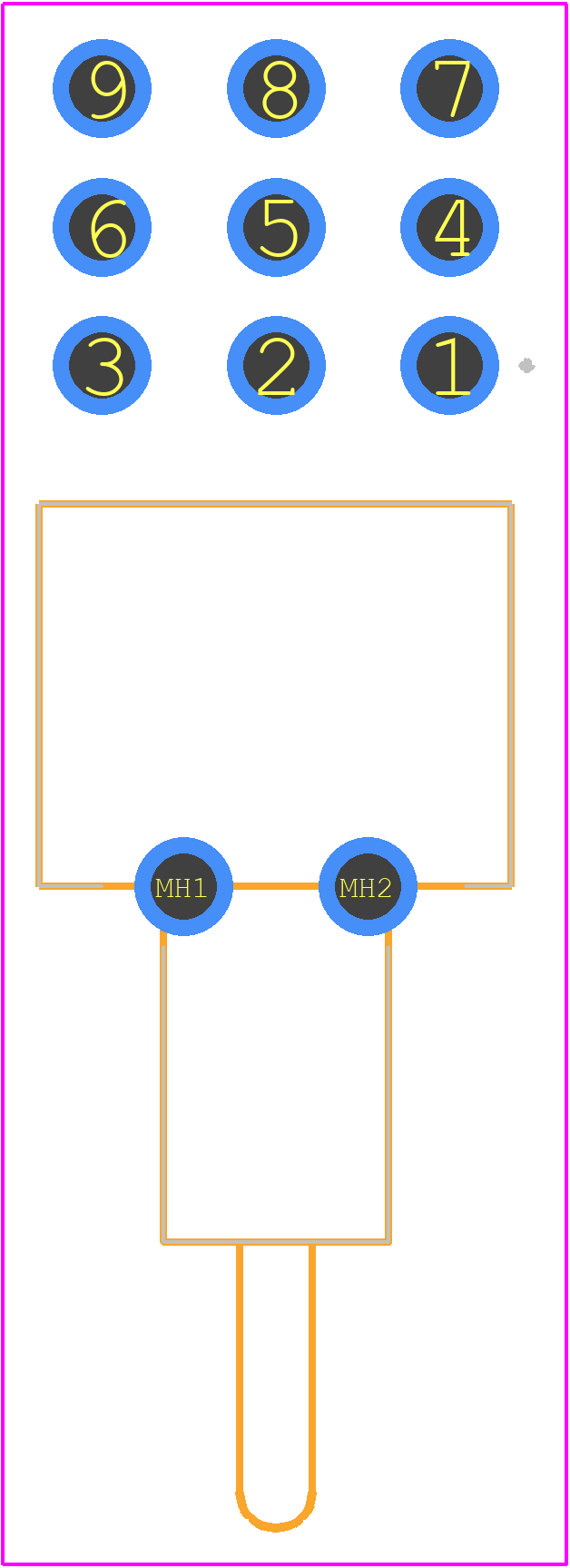

PCB Footprints

M2032SS2W30 Details

The recommended operating temperature range for the M2032SS2W30 is -20°C to 85°C.
Yes, the M2032SS2W30 is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
The maximum switching current rating for the M2032SS2W30 is 2A, and the maximum voltage rating is 30VDC.
Yes, the M2032SS2W30 is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.
The typical bounce time for the M2032SS2W30 switch is 5ms.
