M2033SS4W03 - NKK Switches

M2033SS4W03 Details

• Manufacturer Part Number:

  M2033SS4W03

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  NKK Switches

• YTEOL:

  0

• Actuator Angle:

  25 deg

• Actuator Finish:

  CHROME

• Actuator Length:

  0.413 inch

• Actuator Material:

  BRASS

• Actuator Type:

  SMALL BAT TYPE

• Additional Feature:

  APPROVALS: CSA; UL

• Body Breadth:

  13 mm

• Body Height:

  11.5 mm

• Body Length or Diameter:

  17.5 mm

• Bushing Diameter:

  0.236 inch

• Bushing Length:

  0.35 inch

• Bushing Type:

  M6P0.75

• Center Contact Material:

  SILVER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  6A@125VAC

• Contact Current(AC)-Max:

  6 A

• Contact Current(DC)-Max:

  3 A

• Contact (DC) Max Rating R Load:

  3A@30VDC

• Contact Function:

  ON-OFF-ON

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  25000 Cycle(s)

• End Contact Material:

  SILVER

• End Contact Plating:

  SILVER

• Housing Material:

  DIALLYL PHTHALATE

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

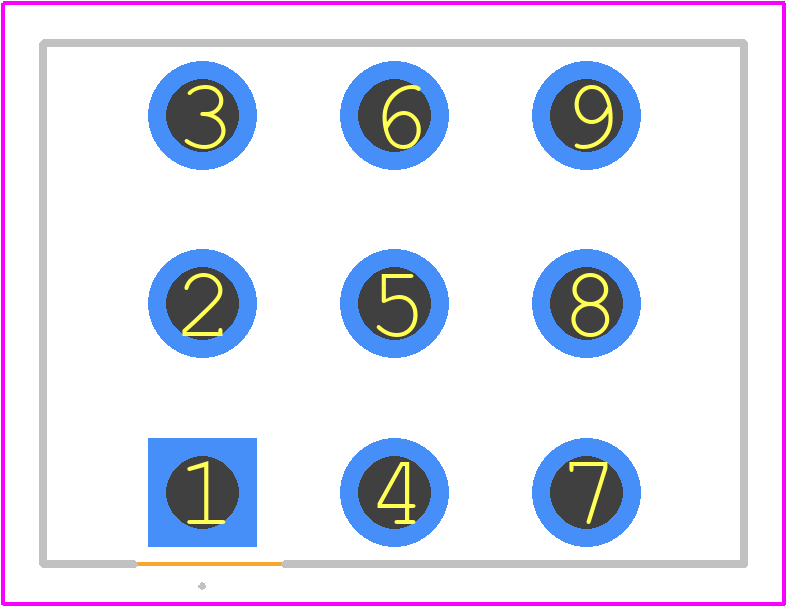

• PCB Hole Count:

  9

• Sealing:

  EPOXY TERMINAL SEALED; MOISTURE PROOF

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

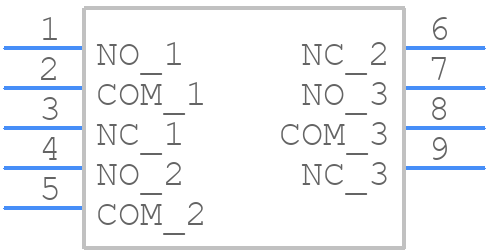

• Switch Function:

  3PDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Length:

  0.25 inch

• Terminal Material:

  COPPER/BRASS

• Termination Type:

  SOLDER

• Washability:

  SOLVENT
